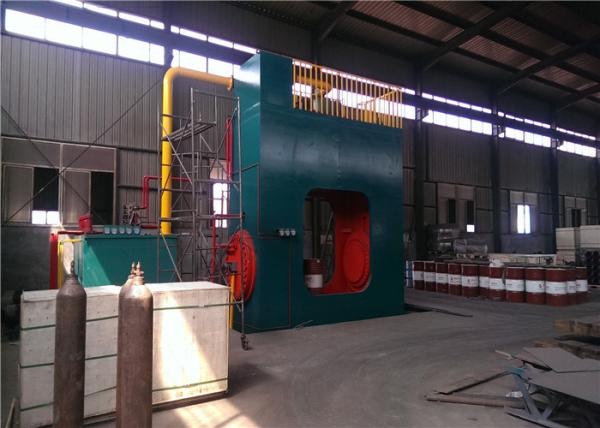

219-610mm carbon steel and stainless steel tee cold forming
machine
Tee machine is the production of tee machine, here the tee refers
to the metal tee, whether it is carbon steel, alloy steel,
stainless steel, and titanium alloy the company's production of tee
machine can be produced.The production of tee machine generally has
three kinds, hot draw tee machine, hot press tee machine, cold
squeeze tee machine.
The characteristics of the hot draw tee machine is that the cost is
low, but the extracted branch is not high enough, the need to weld
a section of steel pipe.Hot pressing tee machine this kind of
technology must first in order to make the wall thickness of the
tee larger than SCH80 tee.
Cold extrusion tee machine, is also the most commonly used tee
production method, now the size of the production is
1/2(21mm)-24(630mm), thickness is SCH80, it is characterized by
high efficiency, low defective rate, reasonable price,generally a
molding.
| Item | Unit | HYT |
| Nominal Force | KN | 2500*2 |
| Return Force | KN | 405*2 |
| Slide stroke | mm | 900 |
| Opening Height | mm | 1400 |
| Hydraulic cushion nominal pressure | KN | 1000*2 |
| Hydraulic cushion return force | KN | 320*2 |
| Hydraulic cushion stroke | mm | 350 |
| The speed of the slipper | Idle stroke | mm/s | 200 |
| pressing | mm/s | 10-24 |
| return | mm/s | 140 |
| Cushion speed | Knock out | mm/s | 60 |
| Return | mm/s | 120 |
| Effective table size | LR | mm | 2200 |
| FB | mm | 1600 |
| Cushion size | LR | mm | 1720 |
| FB | mm | 1120 |
| Overall dimensions | LR | mm | 5000 |
| FB | mm | 2600 |
| Height | mm | 7150 |
| Power of motor | KW | 30*2 |
| Total weight | T | 70 |
The whole structure of tee machine is introduced:
(1) the optimization design of the frame fuselage of the tee
machine ensures the strength of the machine. The welding parts
shall be tested nondestructive, and the aging treatment shall be
carried out after welding to ensure the complete elimination of
stress and no deformation in the use of the equipment.
(2) there are t-shaped slots under the slider and above the work
table for installing the mold.
(3) a dead point lock device is provided on the slider to prevent
the slider from sliding.
(4) the power mechanism is placed on the top of the machine, and
the top of the fuselage is provided with a safety platform and a
fence.
(5) the slide guide is lubricated by non-recovery type automatic
circulating thin oil, and is equipped with oil receiving box and
fault display device.
The hydraulic power mechanism of the tee machine is installed above
the fuselage, oil pump, motor, cartridge valve integration block,
fuel tank and other components, the power mechanism includes oil
filtration, cooling, oil temperature oil level display and other
devices.The main oil pump is a constant power input plunger pump,
and the output flow can vary with the pressure.
Electrical control system of tee machine: tee machine is equipped
with an independent electrical control cabinet, and the main
operation button station is suspended on the fuselage.Tee machine
adopts PLC controller.The tee electromechanical source is AC380V,
the 50HZ control power supply is AC220V, and the electromagnet
power supply of each valve is DC24V.
The tee machine can produce carbon steel, alloy steel, stainless
steel, copper and so on.
