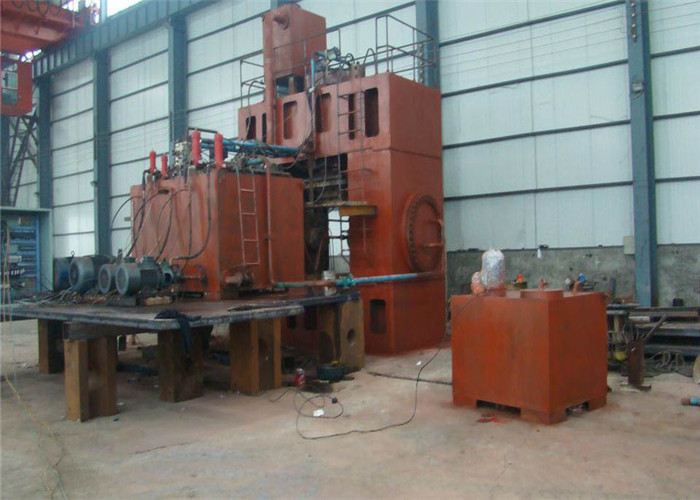

Steel Tee Making Machine High Stability Cold Tee Forming Machine
Tee machine for the formation of tee, the main power is hydraulic
cylinder.Tee machine itself belongs to non - standard products, so
there is no specific specifications and models, we can directly
customized according to customer requirements.Tee diameter from
21mm to 630mm, wall thickness from 3mm to 20mm we can do.
In order to ensure the stability of water pressure, we use a
pressure equalizer to stabilize the water pressure in the copper
pipe to squeeze the three, so that the copper pipe in the extrusion
process to maintain a constant pressure;The two sides of the
cylinder to adjust the synchronization performance, we also used
the synchronizer to synchronize the two sides of the cylinder, so
as to achieve a higher yield (can process the diameter of more than
7 mm of copper tube, pass rate of more than 98%, molding cycle of
about 10 seconds/time).
The tee machine is suitable for the special hydraulic press made of
carbon steel and stainless steel pipes, suitable for the extrusion
molding of tee fitting joints of various specifications to change
the position of the side cylinder, can be processed and
manufactured 90 degrees, 135 degrees and other angles of tee pipe
joints.
Tee machine factory is the most professional hydraulic three-way
machine equipment manufacturers, specializing in the production and
manufacturing of various mechanical equipment.
The company after many years of production on the three - way
machine gradually developed.Modern cutting skills are mainly
numerical control skills, as long as the use of this skill to
ensure the full automation of cutting skills, precision.The use of
this commodity is must pay attention to careful maintenance, a
number of operations, at any time to listen to the sound of the use
of this commodity is not normal, use adhere to an outstanding
environment, if you meet any problems by professional repair.
| Specification | Unit | HYT-315 | HYT-500 | HYT-1000 | HYT-1500 | HYT-2000 | HYT-4000 |
| Tee OD range | lnch | 1~4 | 3~6 | 4~8 | 8~12 | 10~16 | 20~28 |
Master
cylinder | Normal force | KN | 3150 | 5000 | 10000 | 15000 | 20000 | 40000 |
| Work stroke | mm | 450 | 480 | 610 | 670 | 800 | 1200 |
| Go down speed | mm/s | 60 | 80 | 80 | 80 | 80 | 80 |
| Work forward speed | mm/s | 8~12 | 8~12 | 8~12 | 8~12 | 8~12 | 8~12 |
| Return stroke speed | mm/s | 80 | 100 | 100 | 100 | 100 | 100 |
Side
cylinder | Normal force | KN | 3150 | 5000 | 8000 | 12500 | 18000 | 40000 |
| Work stroke | mm | 300 | 320 | 340 | 360 | 410 | 500 |
| Advance speed | mm/s | 10~15 | 10~15 | 10~15 | 10~15 | 10~15 | 10~15 |
| Return stroke speed | mm/s | 60 | 60 | 60 | 60 | 60 | 60 |
Push-out
cylinder | Normal force | KN | 300 | 400 | 500 | 630 | 1500 | 2000 |
| Work stroke | mm | 300 | 300 | 400 | 450 | 550 | 700 |
Workbench
effective area | Right and left | mm | 550 | 750 | 900 | 1200 | 1400 | 1800 |
| Front and back | mm | 400 | 580 | 800 | 1000 | 1200 | 1500 |
| The max distance from slide block to workbench | mm | 190 | 250 | 370 | 460 | 520 | 650 |
| Center high of side cylinder | mm | 980 | 1100 | 1350 | 1800 | 1900 | 2500 |
| Motor power | KW | 30 | 45 | 74 | 110 | 220 | 330 |
Application:
It can apply for making stainless steel tee, carbon steel tee,
Features:
1. Hydraulic Tee Forming Press/tee making machine has rigid
construction assures highly reliable operation.
2. Adopt Germany technology.
2. Special hydraulic circuit design improve working efficiency.
3. High efficiency and low noise hydraulic system can save energy
and improve working environment.
4. User-friendly touch-screen panel provides easy operation and
trouble-shooting.
5. The Safety inter-lock device assures perfect operator safety.
