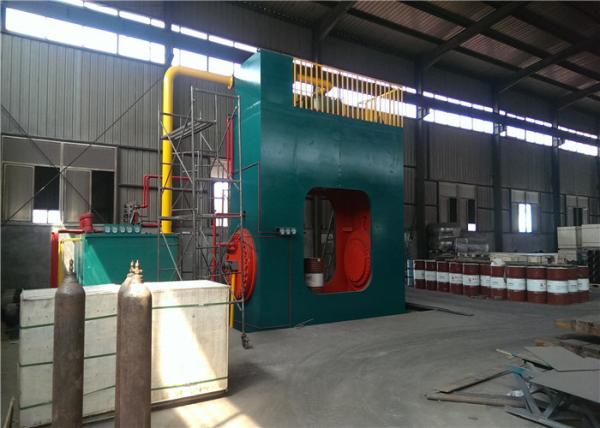

2000T Cold Extruded For Carbon Steel And Stainless Steel Materials
Tee Forming Machine
Tee equipment is mainly able to produce tee pipe fitting equipment,
tee machine production of tee mainly have the same diameter and
reducing tee, tee shape is divided into T shape and Y shape.Tee
machine main production tee material has carbon steel, alloy steel
stainless steel and so on.
The main power of the three-way machine is the hydraulic cylinder,
the body of the three-way machine belongs to the non-standard
products, so there is no specific specifications and models, we can
directly customize according to the specific requirements provided
by the customer.
| Specification | Unit | HYT-315 | HYT-500 | HYT-1000 | HYT-1500 | HYT-2000 | HYT-4000 |
| Tee OD range | lnch | 1~4 | 3~6 | 4~8 | 8~12 | 10~16 | 20~28 |
Master
cylinder | Normal force | KN | 3150 | 5000 | 10000 | 15000 | 20000 | 40000 |
| Work stroke | mm | 450 | 480 | 610 | 670 | 800 | 1200 |
| Go down speed | mm/s | 60 | 80 | 80 | 80 | 80 | 80 |
| Work forward speed | mm/s | 8~12 | 8~12 | 8~12 | 8~12 | 8~12 | 8~12 |
| Return stroke speed | mm/s | 80 | 100 | 100 | 100 | 100 | 100 |
Side
cylinder | Normal force | KN | 3150 | 5000 | 8000 | 12500 | 18000 | 40000 |
| Work stroke | mm | 300 | 320 | 340 | 360 | 410 | 500 |
| Advance speed | mm/s | 10~15 | 10~15 | 10~15 | 10~15 | 10~15 | 10~15 |
| Return stroke speed | mm/s | 60 | 60 | 60 | 60 | 60 | 60 |
Push-out
cylinder | Normal force | KN | 300 | 400 | 500 | 630 | 1500 | 2000 |
| Work stroke | mm | 300 | 300 | 400 | 450 | 550 | 700 |
Workbench
effective area | Right and left | mm | 550 | 750 | 900 | 1200 | 1400 | 1800 |
| Front and back | mm | 400 | 580 | 800 | 1000 | 1200 | 1500 |
| The max distance from slide block to workbench | mm | 190 | 250 | 370 | 460 | 520 | 650 |
| Center high of side cylinder | mm | 980 | 1100 | 1350 | 1800 | 1900 | 2500 |
| Motor power | KW | 30 | 45 | 74 | 110 | 220 | 330 |
tee machine is mainly oil pump, motor, PLC control box, water tank,
the corresponding model mold composition.Tee forming machine body
belongs to non-standard products, so there is no detailed
specifications and models, we can customize the tee machine
according to the customer's request.The diameter of the tee is
21mm-630mm and the wall thickness is 3mm-20mm.Mechanical tee and
ordinary tee function difference.Mechanical tee is divided into
groove mechanical tee and screw mechanical tee.It can be used to
connect branch pipe directly on the steel pipe, and has many
applications on the device of fire pipe and spray pipe.In demand
for diversion or confluence can be used mechanical tee.Device
method first in the steel pipe with a hole opening machine hole,
and then the mechanical three card hole, hole by the sealing ring
along the wall of the tube.Mechanical tee wire connection and
groove type two.When connecting the three mechanical connections,
the clearance between the three mechanical connections and holes
should be checked.Mechanical tee hole spacing shall not be less
than 1m.
