Equal diameter reducing diameter carbon steel and stainless steel tee manufacturing machine

The main parts and components of the tee machine
Tee machine is mainly oil pump, motor, PLC control box, water tank, the corresponding model mold composition.
Tee machine body belongs to non-standard products, so there is no detailed specifications and models, we can customize the

tee machine according to the customer's request.
The diameter of the tee is 21mm-630mm and the wall thickness is 3mm-20mm.
Mechanical tee and ordinary tee function difference.Mechanical tee is divided into groove mechanical tee and screw

mechanical tee.It can be used to connect branch pipe directly on the steel pipe, and has many applications on the device of

fire pipe and spray pipe.In demand for diversion or confluence can be used mechanical tee.
Device method first in the steel pipe with a hole opening machine hole, and then the mechanical three card hole, hole by

the sealing ring along the wall of the tube.Mechanical tee wire connection and groove type two.When connecting the three

mechanical connections, the clearance between the three mechanical connections and holes should be checked.Mechanical tee

hole spacing shall not be less than 1m.

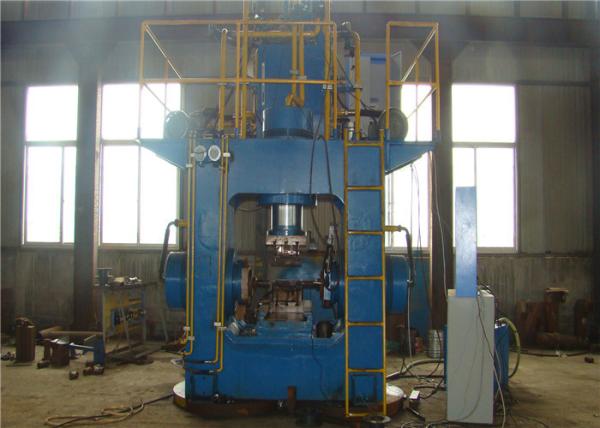

The hydraulic power mechanism of the three-way machine is installed above the fuselage, oil pump, motor, cartridge valve

integration block, fuel tank and other components, the power mechanism includes oil filtration, cooling, oil temperature

oil level display and other devices.The main oil pump is a constant power input plunger pump, and the output flow can vary

with the pressure.
Electrical control system of tee machine: tee machine is equipped with an independent electrical control cabinet, and the

main operation button station is suspended on the fuselage.Tee machine adopts PLC controller.The three-way

electromechanical source is AC380V, the 50HZ control power supply is AC220V, and the electromagnet power supply of each

valve is DC24V.
The tee machine can produce carbon steel, alloy steel, stainless steel, copper and so on

Hei Yan Group Covers the following R&D abilities :

1. PLC induction pipe bending machine,
2. Cold forming tee machine
3. Automatic Hot forming elbow machine
4. hydraulic pipe expanding machine
5. Bevel machine
6. Hydraulic press machine.
7. Cold elbow forming machine
8. Bandsaw machine
9. Medium Frequency power source
10. Shot Blast Machine
11. Pipe fittings dies&mandrels
12. Steel pipe fittings
