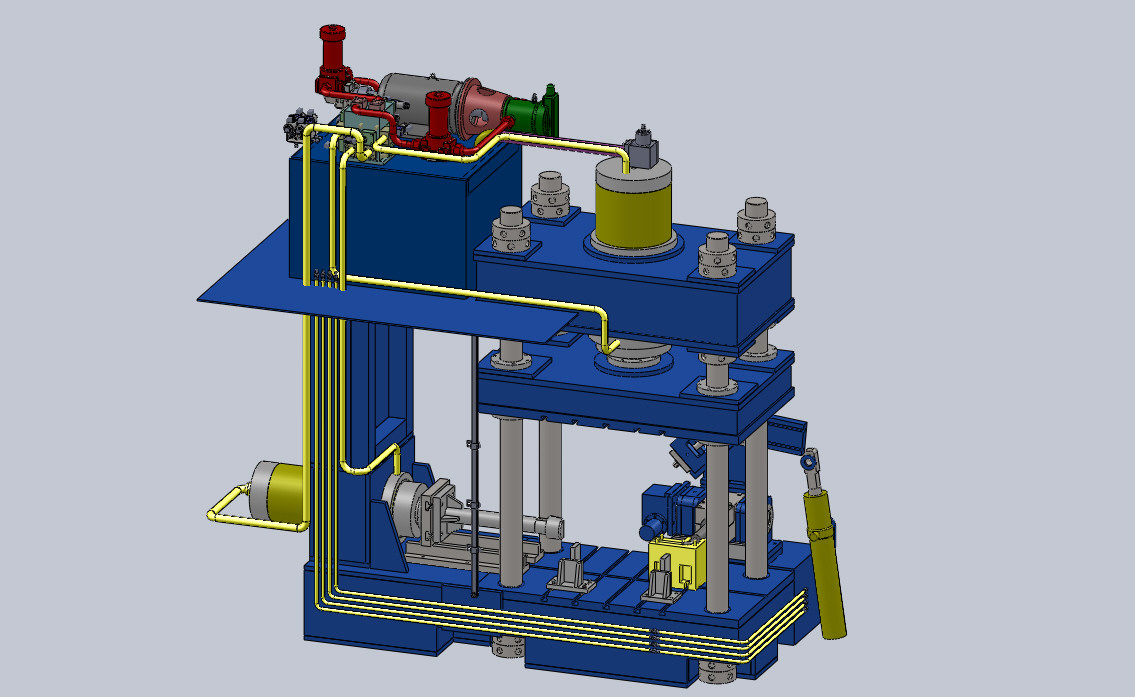

Suitable for the production of seamless 114mm diameter and welding
elbow forming cold bending machine
1.Product Presentation
What is the effect that buys cold push elbow machine, affirmation
is the thing so that use above all, cold push elbow machine is to
do what, we need to understand clearly.First of all, the
composition of the cold push elbow machine is explained.The nose
section and the design of the lathe bed of the stiffener, and
through special processing to eliminate the internal pressure, let
you have enough resistance to pressure, to avoid deformation. The
transmission shaft is disassembled directly from the nose upside
inserts, accurate installation, shield is convenient, the bend axis
and sprocket and integral casting, whole process, the overall
hob,keyless connection, force uniform, driven by double oil
cylinder, pipe bending process, the turning arm in front of the
near front set the Angle of the hydraulic system of active frugal
servant buffer, great front forward precision, fast restoration, in
the process of the return on the verge of starting point with waste
oil buffer, greatly advance the reset accuracy and efficiency. Full
hydraulic pressure drive, microThe computer controller can be
preset 16 kinds of angles, can only control the foot switch of the
cold push elbow machine to complete the cold push elbow machine at
one time.Whole processing, the overall hob, keyless connection,
force uniform, driven by double oil cylinder, pipe bending
process,the turning arm in front of the near front set the Angle of
the hydraulic system of active frugal servant buffer, great front
forward precision, fast reset, return process to the brink of
starting point with waste oil buffer, greatly advance the reset
accuracy and efficiency.Full hydraulic drive.Microcomputer
controller can be preset 16 kinds of angles, can dominate the cold
push elbow machine foot switch to complete a number of processes.
| Model | Size Range (mm) | Clamping Force (KN) | Pushing Force (KN) | Rated working pressure (MPa) | Total power of motor (KW) |
| HYLW-100 | Φ25-Φ76 | 1000 | 630 | 25 | 11 |
| HYLW-200 | Φ34-Φ114 | 2000 | 1250 | 25 | 18.5 |
| HYLW-400A | Φ133-Φ273 | 4000 | 2500 | 25 | 29.5 |
| HYLW-400B | Φ108-Φ219 | 4000 | 2500 | 25 | 29.5 |
| HYLW-630 | Φ133-Φ325 | 6300 | 3150 | 25 | 36 |
| HYLW-800 | Φ219-Φ377 | 8000 | 4500 | 25 | 42 |
| HYLW-1000 | Φ273-Φ426 | 10000 | 5000 | 25 | 65 |
| HYLW-1600 | Φ325-Φ530 | 16000 | 8000 | 25 | 88.5 |
| HYLW-2000 | Φ406-Φ630 | 23000 | 12000 | 25 | 110 |
We are specialized in the manufacture of high-end equipment cold
bending forming equipment manufacturer,has a professional engineer
for technical guidance.Engineers engaged in cold bending mechanical
equipment design for more than 20 years,has a wealth of design
concept.Can provide users with a special type of design and
manufacture.At the same time to sell equipment for
installation,guidance,production,commissioning one-stop service.
Main Features
1.We can make and design all kinds of roll forming machine
according to customers requests.
2.This is a very perfect and durable equipment. We have more than
20 years experiences.
3.This kind of machine has the best quality and the best price. It
has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according
to the customersa?? requirement and we could provide technical
guiding, production, installation, debugging and maintenance
service to all customers.
5. Our product has been exported to many regions and won high
reputation because of the high quality and reasonable price.
