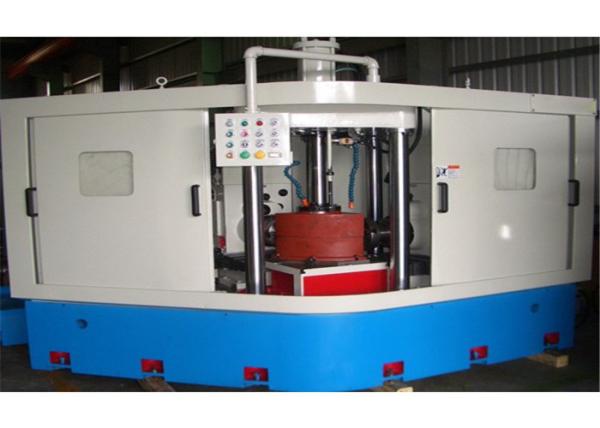

Suitable for the production of seamless 140mm diameter and welding
elbow forming cold bending machine
1. Product Presentation
Before the use of the cold push elbow machine to check whether the
power switch is normal, hydraulic oil is not prepared enough.Check
whether there is any damage to the press mould and whether the
height meets the requirements.Check whether the press mold is
installed in place and should be fixed firmly.Adjust the Angle
positioning frame to the appropriate position, put the electric
heat neatly in the die to start the bending machine to make sure
that the Angle of the bend is in place before taking it out and
replacing it with the other end to repeat the above actions.Mark
the processed products.The equipment must be carefully checked that
there is no product or foreign body in the die before
starting.After the device is opened, it is strictly forbidden to
put your hand into the die or the rod stroke.In the production
process, if there is an abnormal situation, the power should be cut
off first to confirm the shutdown and then check.After production,
the power switch should be turned off and the site cleaned.
The cold push elbow machine is required to have the function of
automatic feeding, by the tube conveying device according to the
time 60 seconds to the elbow machine feeding mechanism feeding.One
feed at a time, the elbow machine can carry out the next push
without waiting after the completion of a push. In addition, in
order to make the elbow fall from the core mold in the same
direction, without chaos.The blanking end can be used to receive
material from the lower die of elbow calibrating die. After
manually adjusting the elbow position, the blanking end can be
directly sent to the online calibrating machine through the
conveying system. The blanking end structure of the corresponding
elbow machine must meet the working requirements.The contactor,
fuse, wiring terminal and other components of the elbow machine
produced by xinxin are imported products, while the components of
other components are high-quality products made in China.When the
elbow machine is shut down, the cooling circulating water pump must
be allowed to continue working, and the pump can only be stopped
when the temperature of the core die part falls to normal.The elbow
machine produced by our company is safe and reliable, easy to
operate, stable and not prone to failure.
| Model | Size Range (mm) | Clamping Force (KN) | Pushing Force (KN) | Rated working pressure (MPa) | Total power of motor (KW) |
| HYLW-100 | Φ25-Φ76 | 1000 | 630 | 25 | 11 |
| HYLW-200 | Φ34-Φ114 | 2000 | 1250 | 25 | 18.5 |
| HYLW-400A | Φ133-Φ273 | 4000 | 2500 | 25 | 29.5 |
| HYLW-400B | Φ108-Φ219 | 4000 | 2500 | 25 | 29.5 |
| HYLW-630 | Φ133-Φ325 | 6300 | 3150 | 25 | 36 |
| HYLW-800 | Φ219-Φ377 | 8000 | 4500 | 25 | 42 |
| HYLW-1000 | Φ273-Φ426 | 10000 | 5000 | 25 | 65 |
| HYLW-1600 | Φ325-Φ530 | 16000 | 8000 | 25 | 88.5 |
| HYLW-2000 | Φ406-Φ630 | 23000 | 12000 | 25 | 110 |
We are specialized in the manufacture of high-end equipment cold
bending forming equipment manufacturer,has a professional engineer
for technical guidance.Engineers engaged in cold bending mechanical
equipment design for more than 20 years,has a wealth of design
concept.Can provide users with a special type of design and
manufacture.At the same time to sell equipment for
installation,guidance,production,commissioning one-stop service.
Main Features
1. We can make and design all kinds of roll forming machine
according to customers requests.
2. This is a very perfect and durable equipment. We have more than
20 years experiences.
3. This kind of machine has the best quality and the best price. It
has accurate measurement and easy operating.
4. We can design and manufacture the special type machine according
to the customersa?? requirement and we could provide technical
guiding, production, installation, debugging and maintenance
service to all customers.
5. Our product has been exported to many regions and won high
reputation because of the high quality and reasonable price.
