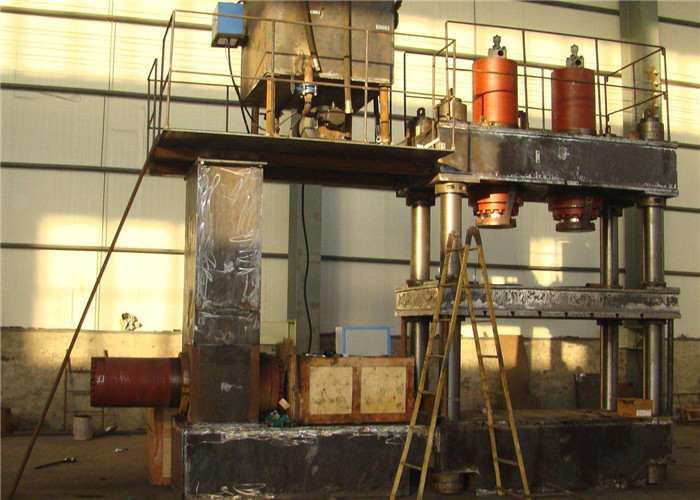

Suitable for the production of seamless 60mm diameter and welding
elbow forming cold bending machine
1.Product Presentation
Introduction to the classification of cold push elbow press:
1. Carbon steel, cast steel, alloy steel, stainless steel, copper,
aluminum alloy, plastic, argon-tarry, PVC, PPR, RFPP(reinforced
polypropylene), etc.
2. It can be divided into pushing, pressing, forging, casting, etc.
3. The manufacturing standard can be divided into national
standard, electrical standard, ship standard, chemical standard,
water standard, American standard, German standard, Japanese
standard, Russian standard, etc.
4. According to its radius of curvature, it can be divided into
long radius elbow and short radius elbow.A long radius elbow is the
outer diameter of a tube whose radius of curvature is equal to 1.5
times, i.e. R= 1.5d.The short radius elbow means that its radius of
curvature is equal to the outside diameter of the pipe, i.e. R=
1.0d.(D is the diameter of the elbow and R is the radius of
curvature).
5. According to the pressure level, there are about 17 kinds of
pipes, which are the same as the American pipe standards, such as:
Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch60,
Sch80s, XS;Sch80, SCH100, Sch120, Sch140, Sch160, XXS;Among them,
STD and XS are more commonly used.
6. According to different shapes, it can be divided into: groove
bend, card sleeve bend, double bearing bend, flange bend, reducing
bend, stay seat bend, internal and external tooth bend, stamping
bend, push bend, socket and socket bend, butt welding bend,
internal wire bend, etc.
| Model | Size Range (mm) | Clamping Force (KN) | Pushing Force (KN) | Rated working pressure (MPa) | Total power of motor (KW) |
| HYLW-100 | Φ25-Φ76 | 1000 | 630 | 25 | 11 |
| HYLW-200 | Φ34-Φ114 | 2000 | 1250 | 25 | 18.5 |
| HYLW-400A | Φ133-Φ273 | 4000 | 2500 | 25 | 29.5 |
| HYLW-400B | Φ108-Φ219 | 4000 | 2500 | 25 | 29.5 |
| HYLW-630 | Φ133-Φ325 | 6300 | 3150 | 25 | 36 |
| HYLW-800 | Φ219-Φ377 | 8000 | 4500 | 25 | 42 |
| HYLW-1000 | Φ273-Φ426 | 10000 | 5000 | 25 | 65 |
| HYLW-1600 | Φ325-Φ530 | 16000 | 8000 | 25 | 88.5 |
| HYLW-2000 | Φ406-Φ630 | 23000 | 12000 | 25 | 110 |
We are specialized in the manufacture of high-end equipment cold
bending forming equipment manufacturer,has a professional engineer
for technical guidance.Engineers engaged in cold bending mechanical
equipment design for more than 20 years,has a wealth of design
concept.Can provide users with a special type of design and
manufacture.At the same time to sell equipment for
installation,guidance,production,commissioning one-stop service.
Main Features
1.We can make and design all kinds of roll forming machine
according to customers requests.
2.This is a very perfect and durable equipment. We have more than
20 years experiences.
3.This kind of machine has the best quality and the best price. It
has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according
to the customersa?? requirement and we could provide technical
guiding, production, installation, debugging and maintenance
service to all customers.
5. Our product has been exported to many regions and won high
reputation because of the high quality and reasonable price.
