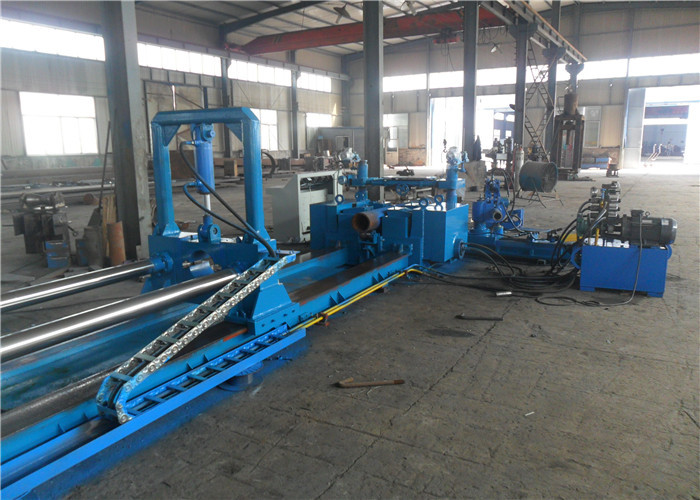

SS CS Steel For Oil Pipelines And Profile Steel Hot Pipe Bending
Machine
Machine content:
PLC:
Automatic operation,easy to operate,fast efficiency and save labors
for whole pipe bender's operation. Support any language sites.
Shift arm:
Long layout design to achieve bends radius from 2D-10D even
more.Centre Axis is important position to measure various bends
radius.Pieces are casting and machining to get precise running when
coordinated with PLC systems.
Support board:
Strong plate welded,mainly for rolling work piece. The supporter of
Punching transformer.
Pushing board:
Clamp and fix the work piece, drive work piece go ahead or back
return during machine working.Different diameter work piece's
fixing by steel pads add and lock on Pushing board.
Cooling tower:
Good brand cooling tower provide enough cooling water flow out when
machine working.
We supply high quality SS CS Steel For Oil Pipelines And Profile Steel Hot Pipe Bending
Machine
, induction heating pipe bending machine for Malaysia market.
Mechanical Design:
Solidworks And FEA Software design .
Control System:
SIEMENS PLC HMI SCADA.
Hydraulic System:
Solidworks
Induction Heating System
IGBT or SCR.
7×24 Hours After Service
| Max size | Model | Heating power | Cylinder capacity | Thickness |
| 6” | HYG-159 | 200KW | IDΦ140 ODΦ168 | 5-20 |
| 8” | HYG-219 | 200KW | IDΦ140 ODΦ168 | 5-20 |
| 12” | HYG-325 | 250KW | IDΦ180 ODΦ219 | 5-20 |
| 16” | HYG-426 | 350KW | IDΦ180 ODΦ219 | 5-20 |
| 20” | HYG-530 | 400KW | IDΦ180 ODΦ219 | 5-20 |
| 24” | HYG-630 | 500KW | IDΦ200 ODΦ245 | 5-20 |
| 28” | HYG-720 | 600KW | IDΦ200 ODΦ245 | 5-20 |
| 32” | HYG-813 | 800KW | IDΦ220 ODΦ273 | 5-20 |
| 36” | HYG-914 | 800KW | IDΦ250 ODΦ299 | 5-20 |
| 48” | HYG-1220 | 1000KW | IDΦ280 ODΦ325 | 5-20 |
| 56” | HYG-1420 | 1000KW | IDΦ280 ODΦ325 | 5-20 |
| 60” | HYG-1520 | 1000KW | IDΦ280 ODΦ325 | 5-20 |
| 64” | HYG-1620 | 1000KW | IDΦ320 ODΦ377 | 5-20 |
The numerous advantages of the SS CS Steel For Oil Pipelines And Profile Steel Hot Pipe Bending
Machine bending process are now widely recognised and deployed across a
diverse range of industries.
Induction bent pipes and tubes are typically used for anything from
a large scale conduit to heat exchange and movement of a plethora
of liquids and gases.
Bending by Heiyan for structural applications meets N.S.S.S
tolerances and conforms to ASME standards for petrochemical
applications.
This remarkable application flexibility means that we are able to
provide a full service to a wide range of industries, including
(but not limited to): -
The numerous advantages of the induction bending process are now
widely recognised and deployed across a diverse range of
industries.
Induction bent pipes and tubes are typically used for anything from
a large scale conduit to heat exchange and movement of a plethora
of liquids and gases.
Bending by Heiyan for structural applications meets N.S.S.S
tolerances and conforms to ASME standards for petrochemical
applications.
This remarkable application flexibility means that we are able to
provide a full service to a wide range of industries, including
(but not limited to): -
