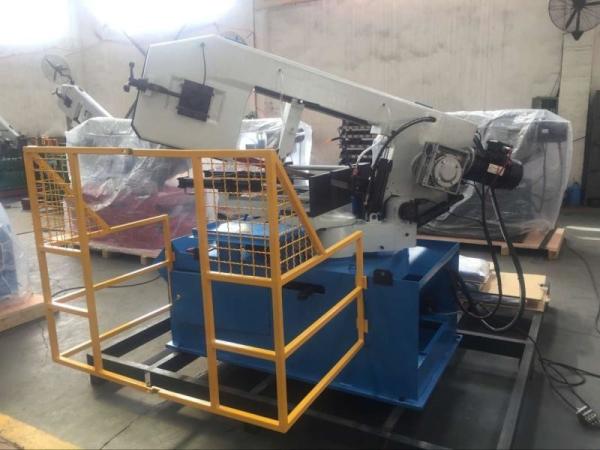

12 Inch Double Column Metal Cutting Band Saw Machine
The main performance characteristics:
1. Double upright column machine type ,rigidity good stability.
2. Hand wave feeding mechanism, sawing automatic cycle.
3. Feeding stepless speed change , Saw belt stepless speed change.
4.The size of the positioning device,For batch production.
Application:
For high precision metal cutting, is the ideal equipment for the
industrial and mining enterprises and small workshops, use is very
extensive.
| Type | GZ4230 |
| Cut capcity W*H (mm) | round 300 |
| square 300*300 |
| Bundle cutting W*H (mm) | Max. 200*90 |
| Min. 100*20 |
| Saw belt size(mm) | 3620*27*0.9 |
| belt line speed(m/min) | 15-80 frequency control |
| Main generator power(kw) | 3 |
| Hydraulic generator power(kw) | 0.75 |
| Cooling generator power (kw) | 0.04 |
| Working clamp style | Hydraulic |
| Saw belt tighten style | Hydraulic |
| Main trasmit structure | Turbine |
| Loading style | Extra roller |
| Volume of oil case (L) | 80 |
| Volume of water case (L) | 60 |
| Max single feeding (mm) | 500 |
| Working table height (mm) | 650 |
| Weights of machine (kgs) | 700 |
| Packing dimensions(mm) L*M*H | 1750*2200*1450 |
Q1: How to install?
A1:We adjusted machines well before we deliver. When customers
receive them, you can work with them directly.
Q2:How to ensure the safety?
A2:There have the overload and over heat protection, it ensure
working people safety.
Q3:How long the table saw machine can be used?
A3: It depends how you use your table saw, if use it in good
maintenance, at least 8-10 years.
Q4:what is the Delivery time?
A4: Our delivery time is around 30 days. Before the machine arrive
at the port, the shipping company will call you.
Q5:Where is your company located?
A5:We are Chinese company. Our city is Hebei. It is the biggest
seaport in the north of China.
Q6:Are there any requirements for the dealer?
A6:There is no special conditions to be our dealer. You buy from us
and sell to your customers. We introduce customers to you.
