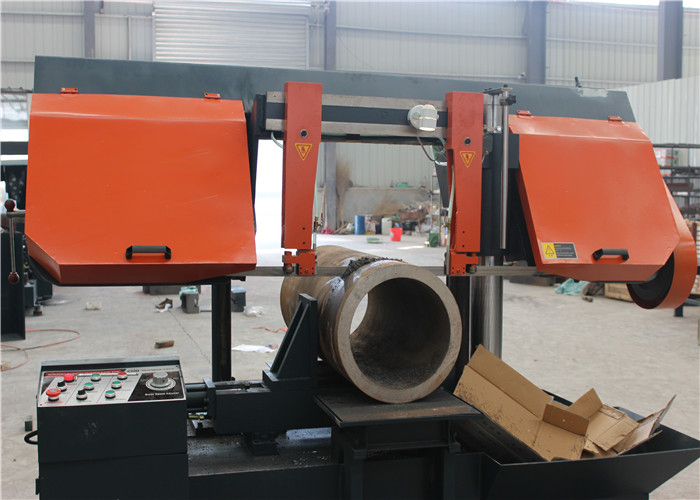

Semi Automatic Band Saw Machinery Stainless Steel band saw cutting
Sharpen Blade
Maintenance content
Semi Automatic Band Saw Machinery Stainless Steel band saw cutting
Sharpen Blade Daily maintenance:
a. Sufficient lubricating grease (oil) for lubricating parts
b. The transmission mechanism operates normally, and the fastening
bolts of all parts are not loose; C. the safety protection device
is complete and reliable
d. The motor operates normally, the saw blade is moderately tight,
and there is no obvious vibration and noise; e. check whether the
hydraulic system pressure is within the rated range, and the
instrument indication is sensitive and reliable; F. clean the
working vise, guide frame, and sawdust in the front and rear wheel
boxes before and after work; g. clean the inside and outside of the
machine tool without oil stain. 4.1.2 weekly maintenance
a. Check the operation of saw blade and adjust the verticality,
pressure and clearance according to the situation
b. Check whether the fastening bolts of each transmission mechanism
are loose, whether the connection is reliable, and whether there is
scratch or noise; C. check whether the coolant level is higher than
1 / 2 of the oil level, and if it is less than 1 / 2, supplement it
d. The motor shall be fixed and operated reliably and stably, the
air vane shield shall be intact and free of dust, noise and
overheating; e. the inside and outside of the distribution cabinet
shall be cleaned; the peripheral electrical equipment such as
buttons, sensors and electrical control boxes shall be free of oil
and dust; F. check whether the cable is damaged, the main engine is
grounded reliably, and the sockets and pins are loose; g. check the
hydraulic system oil The position is high or low, and it shall be
supplemented in time when it is insufficient.
4.1.3 monthly maintenance
a. Semi Automatic Band Saw Machinery Stainless Steel band saw cutting
Sharpen BladeCheck the quality of hydraulic oil, if it is dirty, filter or
replace it; B. check the filter of oil tank and return oil filter
screen, clean the filter screen, and remove foreign matters; C.
check the oil level and quality of oil tank, and supplement or
replace it according to the situation; D. check whether the coolant
level and pipeline are unblocked and deteriorated, and replace them
if necessary; e. check the hydraulic electromagnetism Check whether
the valve acts sensitively and firmly, and whether there is noise
and overheating; g. clean the inside and outside of the
distribution cabinet, with clear lines and no dust; F. check the
operation of the oil pump for noise and overheating.
4.2 maintenance requirements
a. Weekly maintenance covers daily maintenance and monthly
maintenance covers weekly maintenance. B. professional equipment
such as distribution box shall be carried out under the guidance
and cooperation of equipment maintenance personnel.
4.3 maintenance time and frequency
Daily maintenance shall be carried out after each shift; weekly
maintenance shall be carried out at 4:30 p.m. every Friday
1. Pay attention to observe whether all moving parts operate
normally at any time. If there is any abnormal sound response, stop
immediately and check and eliminate it. A kind of
2. Clean the chips in the working table and saw frame in time to
avoid blocking the sawtooth. 3. Regularly check the cleanliness and
oil quantity of coolant and hydraulic oil to ensure that the oil
supply and water supply are sufficient, and add appropriate cutting
fluid to avoid the abnormal operation of the machine due to the
blockage of hydraulic components. 4. Add enough lubricating oil
(grease) to the guide rail surface and each lubricating point. Add
lubricating grease to the saw wheel bearing once in half a year.
For the vertical pulling sleeve of saw frame lifting, add oil once
per shift. A kind of
5. The surface of the rolling guide rail under the rotating body of
the saw frame shall be kept clean, and the oil shall be added
frequently when the angle is constantly changed. A kind of
6. After the work, loosen the saw blade. A kind of
7. The lubricating oil in the reducer should be changed regularly
(half a year to one year). 8. Wipe the machine tool after work to
keep the cleanliness of all parts of the machine tool.
| Type | GZ 4235 |
| Cut capacity W*H (mm) | round 350 |
| square 350*400 |
| Bundle cutting W*H (mm) | Max.350*230 |
| Min.200*20 |
| Saw belt size(mm) | 4220*34*1.1 |
| belt line speed(m/min) | 40/60/80 |
| Main generator power(kw) | 3 |
| Hydraulic generator power(kw) | 0.75 |
| Cooling generator power (kw) | 0.09 |
| Working clamp style | Hydraulic |
| Saw belt tighten style | Hand |
| Main transmit structure | Turbine |
| Loading style | Extra roller |
| Packing dimensions(mm) L*M*H | 2100*110*1500 |
| Weights of machine (kgs) | 1970 |
