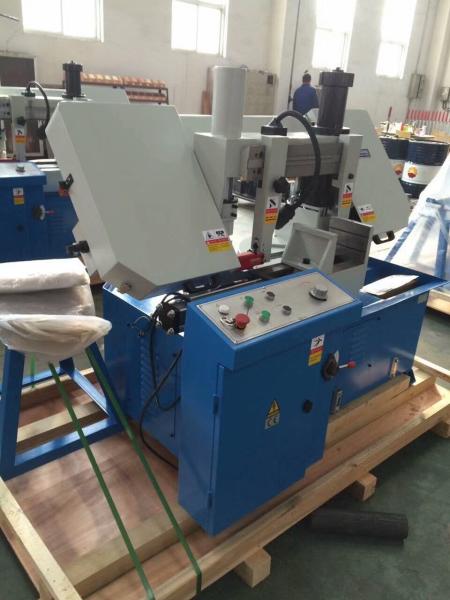

Double Column Horizontal Metal Pipe Profile Band Saw Machine
The main performance characteristics:
1. Double upright column machine type ,rigidity good stability.
2. Hand wave feeding mechanism, sawing automatic cycle.
3. Feeding stepless speed change , Saw belt stepless speed change.
4.The size of the positioning device,For batch production.
Application:
For high precision metal cutting, is the ideal equipment for the
industrial and mining enterprises and small workshops, use is very
extensive.
| Type | GZ4230 |
| Cut capcity W*H (mm) | round 300 |
| square 300*300 |
| Bundle cutting W*H (mm) | Max. 200*90 |
| Min. 100*20 |
| Saw belt size(mm) | 3620*27*0.9 |
| belt line speed(m/min) | 15-80 frequency control |
| Main generator power(kw) | 3 |
| Hydraulic generator power(kw) | 0.75 |
| Cooling generator power (kw) | 0.04 |
| Working clamp style | Hydraulic |
| Saw belt tighten style | Hydraulic |
| Main trasmit structure | Turbine |
| Loading style | Extra roller |
| Volume of oil case (L) | 80 |
| Volume of water case (L) | 60 |
| Max single feeding (mm) | 500 |
| Working table height (mm) | 650 |
| Weights of machine (kgs) | 700 |
| Packing dimensions(mm) L*M*H | 1750*2200*1450 |
1, when the sawing is completed, it will automatically stop and
raise the saw frame for high efficiency operation.
2, the saw belt can adjust the load to ensure that the band saw
does not fatigue and the feed rate is steplessly changed, and can
be adjusted to the best cutting effect.
3, when the sawing machine can cut the cutting speed according to
the material structure properties, the saw blade can effectively
improve the service life of the saw blade.
4, hydraulic tensioning saw blade (easy operation and improve work
efficiency)
5, saw blade break automatically stop (safe)
