Stainless Steel Seamless Pipe Full Automatic Pipeline Bevel Machine
CNC Elbow BEVELING MACHINE(PLC)
Beveling speed: ≤ 5min /pipe bevel (dn200 sch40)
Elbow diameter applicable: Dn50-400(Φ 57-426)/ dn100-600(Φ
114-610)/ dn200-800(Φ 219-813);
Elbow wall thickness applicable: 4-90mm; 6-180mm
Conveying system: End beveling vf conveying systems driven by motor
are equipped at front and rear sides of the beveling machine if
necessary.
Technical parameters
Pipe diameter applicable: Dn50-400(Φ 57-426)/ dn100-600(Φ 114-610)/
dn200-800(Φ 219-813);
Pipe wall thickness applicable: 4-90mm; 6-180mm
Materials applicable: Carbon steel, alloy steel, stainless steel
and cryogenic steel, ect.
Bevel shape: U, x, v and double v
Driven by: Motor
Clamping system: Work piece is clamped by hydraulic cylinder &
centering automatically
Bracket system: Screw lifting adjustable
Rev of the principal axis: Stepless speed control & variable
frequency
Axial displacement: 80mm(principle axis) 100mm(machine head);
150mm(principal axis), 300mm (machine head)
Bevel angle of tool rest: 0° ~45°
Widthwise displacement: ± 50mm; ± 100mm
Control system: PLC controlling; CNC controlling
Performance features
On-line performance: Good(designed as per the on-line equipment of
the production line)
Beveling speed: ≤ 5min /pipe bevel (dn200 sch40)
Bevel cutting: Cutting a pipe with other equipment such as band saw
and then machining each bevel.
Bevel quality: Very good
Application: For machining the u or v shape bevels for numbers of
pipes with heavy wall thickness

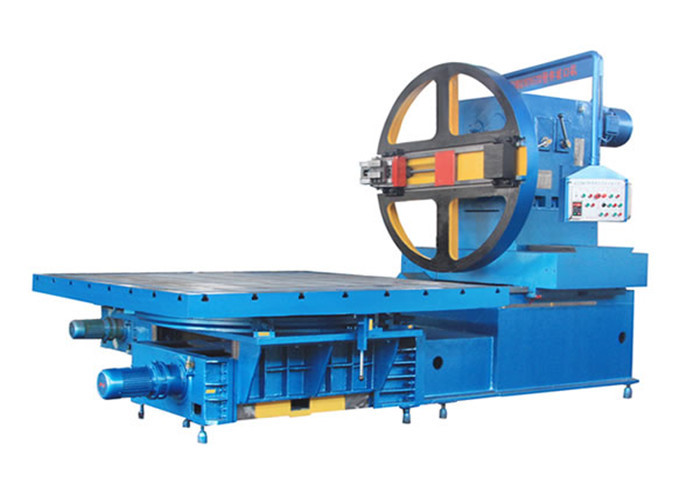

Fixed-Type High Speed Numerical Control Eblow Beveling Machine
1. Elbow beveling machine has the features of unique design,
compact structure, beautiful look and convenience to operate.
It is an ideal equipment for chamfering metal right-angel elbow
end.
The products processed by the machine are comply with relevant
elbow beveling standard.
2. This machine drives strongly, cuts quickly and works
efficiently.
It contains novel- structured floating cutter support, well and
truly oriented workpiece clamp and qualified excellent hydraulic
feed lock device to ensure normal and quick forward/ backward
movement of the workpiece on the slipway,
It could beveling at both ends to confirm the correct 90 and 180
degree.
Technical parameters
3. Equipment performance
3.1 the beveling mainframe use(GB707-1988)Q235B steel plate welding
to fit the working pressure .
3.2 the milling power head is use the high level standard power
head make
3.3 main hydraulic station control press material oil cylinder fix
,keep pressure and loose .
3.4 oil tank is Q235-4mm steel plate welding combine 0.7M*0.6M*0.6M
square oil tank box one piece the cubage is 0.28m3, working media
L-HM46 anti-wear hydraulic oil.
3.5 hydraulic station motor :1set
3.6 gear pump 1set
4. CNC system
Cabinet body adopt JJT sheet make ,control electrical
appliance(Star delta start)Domestic high level quality components
are adopted,PLC control with automatic , point move ,manual three
operate way,working cost low ,all the button all pit on the control
cabinet ,easy to control .
| Pipe Dia applicable: | DN50-400 (φ60-426mm) | DN100-600(φ114-610 ) | DN200-800 (φ219-813 mm) |
| Pipe wall thickness applicable: | 4-90mm | 6-180mm | 6-180mm |
| Beveling speed: | ≤ 5min /pipe bevel (dn200 sch40) | ≤ 5min /pipe bevel (dn200 sch40) | ≤ 5min /pipe bevel (dn200 sch40) |
| Bevel angle of tool rest: | 0° ~45° | 0° ~45° | 0° ~45° |
| Parameter/model | YQ-89 | YQ-168 | YQ-325 | YQ-630 | YQ-820 | YQ-1020 | YQ-1800 | | Turning diameter(mm) | 21-89 | 89-168 | 168-325 | 325-630 | 630-820 | 820-1020 | 1020-1800 | | Revolution of cutter head(rpm) | 600 | 350 | 200 | 150 | 100 | 80 | 40 | | Feeding turn volume(mm/r) | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
|
