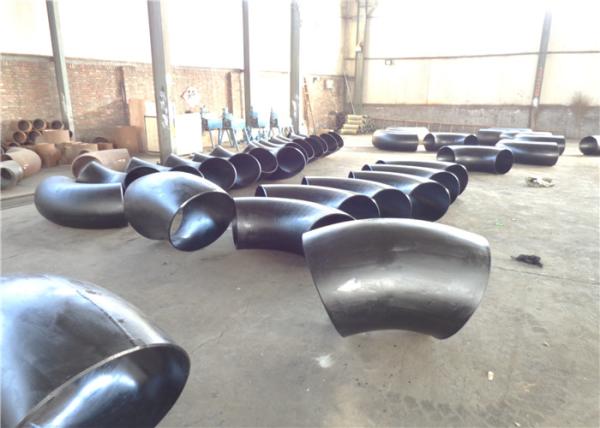

Pipe Fittings Elbow Nace A234 Wpb Elbow Double Flange Long Radius
Elbow
Product Parameter of Pipe Fittings Elbow Nace A234 Wpb Elbow Double Flange Long Radius
Elbow
| Type | Pipe Elbows |
| Size | >Seamless Elbow:1/2"~24"(DN15~DN600) |
| >Seam Welded Elbow: 1/2"~72"(DN15~DN1800) |
| Material | >Carbon steel: ASTM/ASME A234 WPB,WPC, ST37-2,ST54 |
| >Alloy steel: ASTM/ASME A234 WP9-WP12-WP11-WP22-WP5-WP91 |
| >Stainless steel: ASTM/ASME A403 WP 304-304L, WP 316-316L,WP
321,201 |
| >Low-temperature steel: ASTM/ASME A402 WPL 3-WPL 6 |
| >High performance: ASTM/ASME A860 WPHY 42-46-52-60-65-70 |
| Bending Radius | >Long Radius Elbow (R=1.5D) |
| >Short Radius Elbow(R=1.0D) |
| >Bend Elbow/Elbow(R=3D or R=5D) |
| Degree | 45 degree, 90 degree, 180 degree. |
| Standards | ANSI/ASME B16.9,DIN,JIS,EN,BS,GOST |
| Wall thickness/Rating | >Common Size:sch10, sch20, sch30, std, sch40, sch60, xs, sch80,
sch100, sch120, sch140, sch160, xxs, std,sch5s, sch20s, sch40s,
sch80s >Accordingly:SCH5-XXS |
| Surface treatment | No treatment,sand blasting,anti-rust oil,black painting,hot dipped
galvanized |
| Packing | Carbon steel elbows are widely packed with loose package,ply-wooden
case,ply-wooden pallet or with plastic cap or Iron protector |
| Certification | ISO 9001:2008,CCS ,TUV,CCIC,PED(EN10204-3.1/97/23/EC) |
| Usage | Carbon steel elbows are used to change the direction of the flow in
piping |
| Applications | Carbon steel elbows are widely used in water supply pipelines, food
processing pipelines, the oil, chemical, and petroleum industry,
fluid transfer piping systems. |
| Elbows | Equal Tee | Nipple |
| Long Radius Elbow | Reducing Tee | Swage Nipple |
| Short Radius Elbow | Reducer | Barrel Nipple |
| 90 Deg Elbow | Concentric Reducer | Reducing Nipple |
| 45 Deg Elbows | Eccentric Reducer | Bend |
| 180 Deg Elbow | End Cap | Long Radius Bend |
| 1D Elbow | Cap | Piggable Bend |
| 3D Elbow | Stubend | Cross |
| 5D Elbow | Long Stubend | |
| Tee | Short Stubend | |
We Heiyan are Pipe Fittings Elbow Nace A234 Wpb Elbow Double Flange Long Radius
Elbow LONG RADIUS ELBOWS, SHORT RADIUS ELBOW, CARBON STEEL ELBOWS, ELBOW
MANUFACTURER
Pipe Fittings Elbow Nace A234 Wpb Elbow Double Flange Long Radius
Elbow , Carbon Steel Elbows, Stainless Steel Elbows, Alloy Steel Elbows,
Long Radius Elbows, Short Radius Elbows. 3D Elbows, 5D Elbows,
Custom Radius Elbow Supplier in China, 316 Elbow, A234 WPB Elbows
Manufacturer, A420 WPL6 Elbow, A234 WP11 Elbow, A234 WP5 Elbow,
A403 WP304 Elbow, A403 WP304L Elbow, A403-WP316 Elbow, A403-WP316L
Elbow, Seamless Elbows, Large Diameter Fabricated Elbows, 20″ NB
Elbow, 36″ NB Elbow Supplier, Buttweld Elbows Manufacturer, Duplex
2205 Pipe Elbow, 100% X-Ray Welded Elbows
Pipe Fittings Elbow Nace A234 Wpb Elbow Double Flange Long Radius
Elbow up to 72″ in all Schedule, Ratings and Grades with Bending radius
R = 1D – 10D, Product Angle 0°~180°
The Pipe Fittings Elbow Nace A234 Wpb Elbow Double Flange Long Radius
Elbow , long radius elbows have a center to end distance that is 1.5
times the NPS in inches (R=1.5D), while the short radius is equal
to the NPS in inches (R=1.0D). Short radius elbows are generally
used in tight areas, and long radius elbows are used when space is
available and flow is more critical. We can also manufacture and
supply carbon steel elbows and stainless steel elbows in
non-standard size angles such as 60°, 100°, 120° or 150°.
We are a high quality manufacturer and supplier of Pipe Fittings Elbow Nace A234 Wpb Elbow Double Flange Long Radius
Elbow, long radius elbows, short radius elbows, stainless steel elbows,
duplex elbows, and carbon steel elbows as well as fabricated
stainless steel elbows. We supply our products to customers in
various industries including pharmaceutical, chemical, power,
petrochemical, engineering and various other industries.
