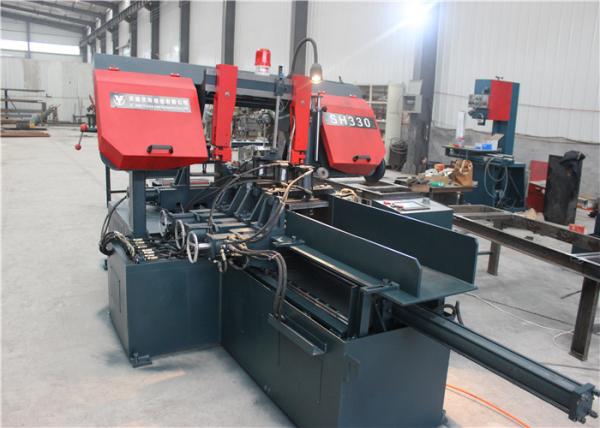

Industrial Sawing Automatic Horizontal Metal Bandsaw Cutting
Machine
Safety operation specification for horizontal band saw
1. Operation procedure:
1.1 turn on the power switch, turn the emergency stop button, the
oil pump starts, the indicator light is on, press the saw frame up
button, and the saw frame up is placed in the up position. A kind
of
1.2 place the clamp button of the vise at the release position,
rotate the hand wheel behind the clamp cylinder according to the
size of the material, move the working vise, so that the neutral
between the two vises is greater than the distance of about 10 mm
from the workpiece, at this time, send the workpiece to the length
of the saw, and rotate the clamp button to the clamp position. A
kind of
1.3 press the start button of the band saw blade, the indicator
light will be on, the band saw blade will operate, rotate the
coolant switch, and the coolant will be ejected from both sides of
the two guide frames. A kind of
2. Emergency stop: if there is an emergency state in sawing, the
stop can be realized through the emergency stop button. Generally,
as long as pressing the emergency stop button, the machine tool can
stop sawing. Start the emergency stop button, press the up button
to make the saw blade leave the workpiece SAW seam, and then the
saw can be cut again. A kind of
3. Feed speed adjustment: the speed control knob is located on the
operation platform. It is recommended to use 50 mm / min for the
value of the empty distance, i.e. the height from the saw frame to
50 mm from the saw blade to the working platform (measured from the
specified vise surface). After the machine tool idles for 10
minutes, adjust the knob clockwise, and the feed speed increases,
otherwise, it decreases until the feed time is 1 minute. During
operation, the adjustment of feed speed can be changed according to
the actual sawing workpiece material and material brand. For pipe
and profile sawing, the feed speed is not easy to be too large. The
appropriate feed speed in sawing can be adjusted according to the
sawdust thickness, which is generally uniform, curly and elastic.
Generally speaking, if the feed speed is too fast, it is easy to
produce the cutting tooth fracture of the saw blade, otherwise, it
will reduce the productivity. A kind of
4. Band sawing speed: the selection of band sawing speed mainly
depends on the processing performance of the workpiece. For general
small-diameter steel, the band sawing speed is 45m / min or 65m /
min. for general large-diameter steel (i.e. 45 steel with diameter
of over 180mm), 25m / min is recommended. For aluminum or copper,
the band sawing speed is 65m / min. for bearing steel and stainless
steel, the band sawing speed is 25 M / min is enough. Generally
speaking, too high cutting speed is easy to cause premature burn of
the cutting edge, and too low cutting speed leads to low
productivity and fracture of the cutting edge
| Type | GZ 4240 |
| Cut capcity W*H (mm) | round 400 |
| square 400*470 |
| Bundle cutting W*H (mm) | Max. 400*280 |
| Min.200*20 |
| Saw belt size(mm) | 4750*34*1.1 |
| belt line speed(m/min) | 40/60/80 |
| Main generator power(kw) | 3 |
| Hydraulic generator power(kw) | 1.5 |
| Cooling generator power (kw) | 0.09 |
| Working clamp style | Hydraulic |
| Saw belt tighten style | Hand |
| Main transmit structure | Turbine |
| Loading style | Extra roller |
| Packing dimensions(mm) L*M*H | 2200*1150*1650 |
| Weights of machine (kgs) | 2280 |
