Full Automatic Hydraulic Metal Cutting Band Saw Machine from China
The main performance characteristics:
1. Double upright column machine type ,rigidity good stability.
2. Hand wave feeding mechanism, sawing automatic cycle.
3. Feeding stepless speed change , Saw belt stepless speed change.
4.The size of the positioning device,For batch production.
Application:
For high precision metal cutting, is the ideal equipment for the
industrial and mining enterprises and small workshops, use is very
extensive.

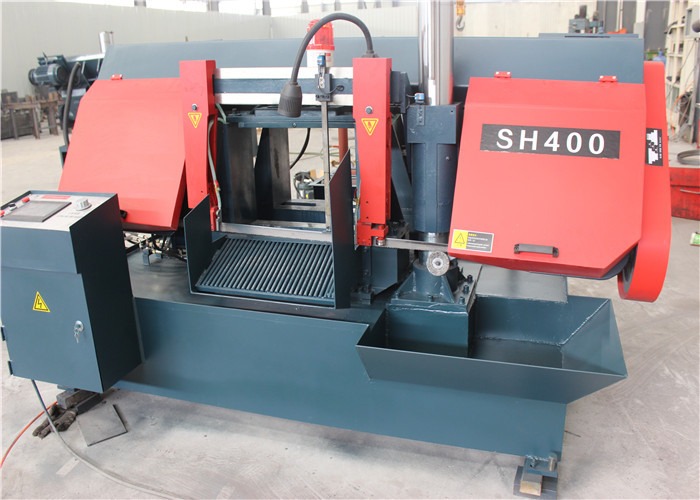

| Type | SH400 |
| Cut capcity W*H (mm) | round 400 |
| square 400*400 |
| Bundle cutting W*H (mm) | Max. 400*90 |
| Min. 100*20 |
| Saw belt size(mm) | 3620*27*0.9 |
| belt line speed(m/min) | 15-80 frequency control |
| Main generator power(kw) | 3 |
| Hydraulic generator power(kw) | 0.75 |
| Cooling generator power (kw) | 0.04 |
| Working clamp style | Hydraulic |
| Saw belt tighten style | Hydraulic |
| Main trasmit structure | Turbine |
| Loading style | Extra roller |
| Volume of oil case (L) | 80 |
| Volume of water case (L) | 60 |
| Max single feeding (mm) | 500 |
| Working table height (mm) | 650 |
| Weights of machine (kgs) | 700 |
| Packing dimensions(mm) L*M*H | 1750*2200*1450 |
4. Equipment maintenance
(1) After using, the user shall stop all the power supply of the
saw, clean the equipment, remove the saw foam, clean the working
site and surrounding environment, return the tools and fixtures
(2) inject oil into the guide rail and the gear pair every day. A
kind of
(3) Check whether all wires are in good condition every month, or
replace them.
(4) change the hydraulic oil of the governor box every half a year
