Double V,U And Single V Pipe Fittings And Parts Bevel Types Making
Machine

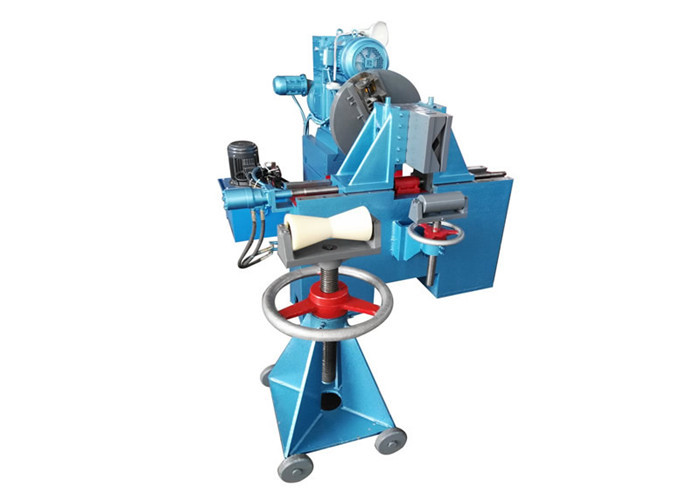

Fixed-Type High Speed Numerical Control Eblow Beveling Machine
CNC Elbow BEVELING MACHINE(PLC)
Beveling speed: ≤ 5min /pipe bevel (dn200 sch40)
Elbow diameter applicable: Dn50-400(Φ 57-426)/ dn100-600(Φ
114-610)/ dn200-800(Φ 219-813);
Elbow wall thickness applicable: 4-90mm; 6-180mm
Conveying system: End beveling vf conveying systems driven by motor
are equipped at front and rear sides of the beveling machine if
necessary.
Performance features
Automatic aligning: At the end of beveling machine conveying system
equipped with lifting device could be provided if necessary to
adjust automatically the center elevation of the elbow, so as to
bevel the elbows with different diameter
On-line performance: Good(designed as per the on-line equipment of
the production line)
Bevel cutting: Cutting a pipe with other equipment such as band saw
and then machining each bevel.
Bevel quality: Very good
Application: For machining the u or v shape bevels for numbers of
pipe-fittings with heavy wall thickness
Use Q235 steel plate welding ,nicety process.
| Pipe Dia applicable: | DN50-400 (φ60-426mm) | DN100-600(φ114-610 ) | DN200-800 (φ219-813 mm) |
| Pipe wall thickness applicable: | 4-90mm | 6-180mm | 6-180mm |
| Beveling speed: | ≤ 5min /pipe bevel (dn200 sch40) | ≤ 5min /pipe bevel (dn200 sch40) | ≤ 5min /pipe bevel (dn200 sch40) |
| Bevel angle of tool rest: | 0° ~45° | 0° ~45° | 0° ~45° |
| Parameter/model | YQ-89 | YQ-168 | YQ-325 | YQ-630 | YQ-820 | YQ-1020 | YQ-1800 | | Turning diameter(mm) | 21-89 | 89-168 | 168-325 | 325-630 | 630-820 | 820-1020 | 1020-1800 | | Revolution of cutter head(rpm) | 600 | 350 | 200 | 150 | 100 | 80 | 40 | | Feeding turn volume(mm/r) | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
|
