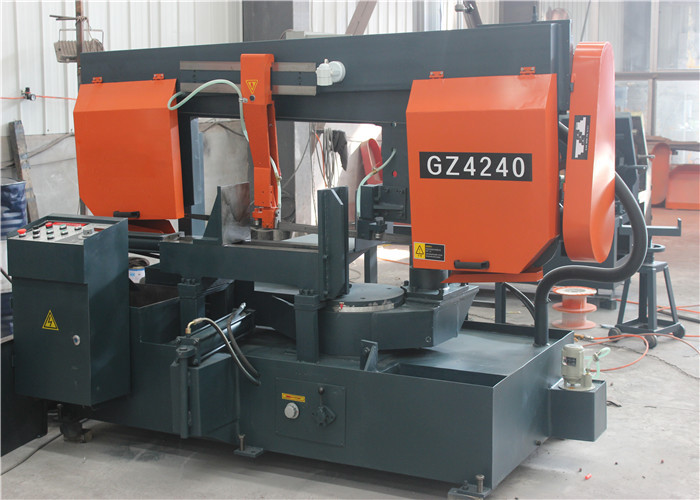

Gantry Large Diameter Stainless Steel Band Saw Machine 0.15KW
Cooling Generator Power
1. Purpose
In order to operate and maintain the metal band sawing machine
safely and correctly, this procedure is specially formulated.
2. Scope of application
This procedure is applicable to the safe operation and maintenance
of metal band sawing machine.
3. Responsibilities
3.1 The production department is responsible for supervising the
implementation of this procedure.
3.2 the equipment user is responsible for the safe and correct use
and maintenance of the equipment.
4. Contents and requirements
4.1 the operator of the sawing machine must receive professional
training, master the operation skills of the metal band sawing
machine, and be familiar with its relevant performance. A kind of
4.2 before operation, run the car empty first to check whether the
operation is stable, whether the clamping device is reliable and
whether there is noise. A kind of
4.3 according to the specification of the material to be cut, the
material shall be selected reasonably: the pitch of the saw belt;
the appropriate cutting amount and coolant, and the position of the
guide arm shall be adjusted. A kind of
4.4 the maximum diameter of the saw material shall not exceed the
specified value. The workpiece must be clamped stably, the band saw
blade shall be properly tightened, and the speed and feed rate
shall be appropriate. A kind of
4.5 when cutting multiple pieces, a reasonable number of pieces
shall be selected to ensure that each piece is in the clamped
state. The sawed workpiece shall be cleared away from the band saw
in time and the workpiece shall be stacked neatly. A kind of
4.6 it is forbidden to open, dismantle and move the safety
protection device and warning nameplate on the machine tool
arbitrarily.
4.7 it is forbidden to touch the band saw blade by hand or take the
stuck or cut workpiece in the sawing processing area of the sawing
machine. A kind of
4.8 the saw blade breaks during cutting. After replacing the new
saw blade, the workpiece must be turned over and sawed from the
beginning. When disassembling and replacing the saw blade, it must
be confirmed that the machine tool has stopped running, and gloves
must be worn when disassembling and assembling the saw blade. A
kind of
4.9 it is strictly prohibited to saw and cut carbon rod powder
combustible and explosive materials. A kind of
4.10 after the completion of the work, thoroughly clean the sawing
machine, add lubricating oil and cut off the power supply.
| Type | GZ 4290 |
| Cut capcity W*H (mm) | round 900 |
| square 900*900 |
| Bundle cutting W*H (mm) | / |
| / |
| Saw belt size(mm) | 9600*67*1.6 |
| belt line speed(m/min) | 40/60/80 (frequency control available) |
| Main generator power(kw) | 11 |
| Hydraulic generator power(kw) | 2.2 |
| Cooling generator power (kw) | 0.15 |
| Working clamp style | Hydraulic |
| Saw belt tighten style | Hydraulic |
| Main transmit structure | Main transmit structure |
| Loading style | Extra roller |
| Packing dimensions(mm) L*M*H | 4700*2100*2850 |
| Weights of machine (kgs) | 13800 |
