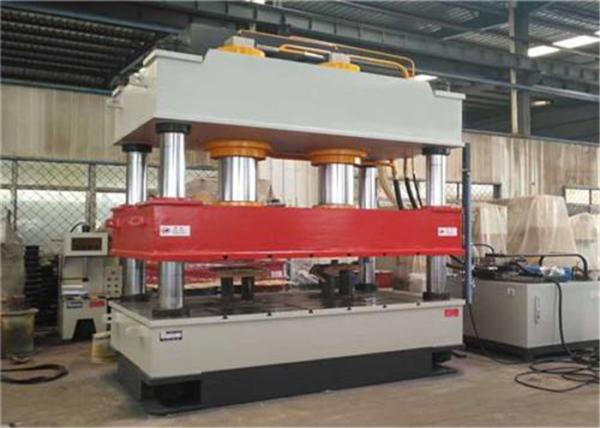

China full automatic carbon steel stainless steel tee machine price
tee machine is mainly oil pump, motor, PLC control box, water tank,
the corresponding model mold composition.Tee machine body belongs
to non-standard products, so there is no detailed specifications
and models, we can customize the three-way machine according to the
customer's request.The diameter of the tee is 21mm-630mm and the
wall thickness is 3mm-20mm.Mechanical tee and ordinary tee function
difference.Mechanical tee is divided into groove mechanical tee and
screw mechanical tee.It can be used to connect branch pipe directly
on the steel pipe, and has many applications on the device of fire
pipe and spray pipe.In demand for diversion or confluence can be
used mechanical tee.Device method first in the steel pipe with a
hole opening machine hole, and then the mechanical three card hole,
hole by the sealing ring along the wall of the tube.Mechanical
three - way wire connection and groove type two.
| Specification | Unit | HYT-315 | HYT-500 | HYT-1000 | HYT-1500 | HYT-2000 | HYT-4000 |
| Tee OD range | lnch | 1~4 | 3~6 | 4~8 | 8~12 | 10~16 | 20~28 |
Master
cylinder | Normal force | KN | 3150 | 5000 | 10000 | 15000 | 20000 | 40000 |
| Work stroke | mm | 450 | 480 | 610 | 670 | 800 | 1200 |
| Go down speed | mm/s | 60 | 80 | 80 | 80 | 80 | 80 |
| Work forward speed | mm/s | 8~12 | 8~12 | 8~12 | 8~12 | 8~12 | 8~12 |
| Return stroke speed | mm/s | 80 | 100 | 100 | 100 | 100 | 100 |
Side
cylinder | Normal force | KN | 3150 | 5000 | 8000 | 12500 | 18000 | 40000 |
| Work stroke | mm | 300 | 320 | 340 | 360 | 410 | 500 |
| Advance speed | mm/s | 10~15 | 10~15 | 10~15 | 10~15 | 10~15 | 10~15 |
| Return stroke speed | mm/s | 60 | 60 | 60 | 60 | 60 | 60 |
Push-out
cylinder | Normal force | KN | 300 | 400 | 500 | 630 | 1500 | 2000 |
| Work stroke | mm | 300 | 300 | 400 | 450 | 550 | 700 |
Workbench
effective area | Right and left | mm | 550 | 750 | 900 | 1200 | 1400 | 1800 |
| Front and back | mm | 400 | 580 | 800 | 1000 | 1200 | 1500 |
| The max distance from slide block to workbench | mm | 190 | 250 | 370 | 460 | 520 | 650 |
| Center high of side cylinder | mm | 980 | 1100 | 1350 | 1800 | 1900 | 2500 |
| Motor power | KW | 30 | 45 | 74 | 110 | 220 | 330 |
Forming principle of tee forming machine: first, put the tube blank
into the lower die cavity, press the plunger push head into both
ends of the pipe fitting under the action of hydraulic cylinder, so
that the pipe fitting cavity is sealed, and then inject the liquid
medium into the pipe fitting cavity through the liquid channel in
the push head;At this point, the upper mold moves downward, forming
a closed mold cavity together with the lower mold. Finally, the
pressure of high-pressure pump and valve control liquid increases
continuously, and the push head pushes the pipe fitting inward. The
pipe wall deforms and gradually sticks to the inner wall of the
mold, forming the tee.
