Elbow Cold Forming Machine Make Pipe Fitting Mould Die Elbow Mould
And Mandel
Our Elbow Cold Forming Machine Make Pipe Fitting Mould Die Elbow Mould
And Mandel and elbow mandrel head materials are generally ZG1Cr18Ni9Ti,
ZG3Cr20Ni14, ZG1Cr25Ni20Si2, ZG0Cr20Ni25, etc., the high
temperature strength and wear resistance have gradually increased,
and the price has also increased accordingly.
Pushed elbow mandrel head is divided into single curvature, double
curvature and multiple curvature according to the radius of
curvature.
For single-curvature, double-curvature, and multi-curvature
mandrels, the thrust force is gradually reduced, and the production
cost is gradually increased. According to the cross-sectional
shape, it is divided into two types: circular cross section and
elliptical cross section. The circular cross section is simple to
make and the cost is low, but the ellipticity and thinning rate of
the elbow are too large. Different, the ellipse and thinning rate
of the push elbow are small.
Heiyan chose a mandrel with an oval cross section. According to
whether or not there is a shaping section, it is divided into a
mandrel head with a shaping section and a mandrel head without a
shaping section. The Elbow Cold Forming Machine Make Pipe Fitting Mould Die Elbow Mould
And Mandel mandrel with shaped section is complicated to manufacture, high
cost and long use time; the mandrel without shaped section is
simple to manufacture and low cost.
| Parts Specifications of Our Pipe Expanding and Pipe Fitiings Mould |
| Material | 2520 ,2014, 304,45# steel ,40# steel,47# steel |
| Size | 27mm ,33mm ,42mm ,48mm ,60mm,73mm,89mm ,102mm ,114mm,141mm
,168mm,219mm,273mm,324mm,356mm ,406mm ,457mm ,508mm ,559mm ,610mm
,660mm ,711mm ,762mm,813mm ,864mm ,914mm ,926mm ,1016mm ,1067mm
,1118mm ,1168mm ,1219mm |
| Pipe Fitiings Mould Type | Elbow Mould Die ,Tee Mould Die ,Cap Mould Die, Reducer Mould Die
,Pipe expanding Mould Die |

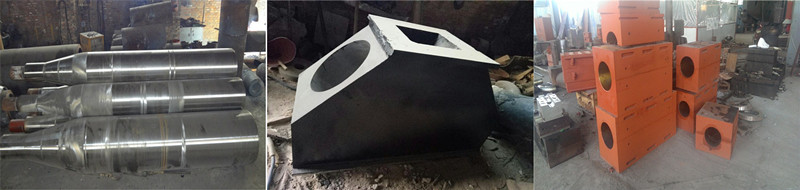

Product Description
We Supply Elbow Cold Forming Machine Make Pipe Fitting Mould Die Elbow Mould
And Mandel and all kinds of corresponding molds and dies for all our Pipe
fittings Machine. The mandrel and corresponding induction coil for
elbow forming machine. The mandrel is mainly engineered from 18-8,
2520, K18, stainless steel and alloy steel. It allows for
production of pipe elbows with diameter between 21 and 1,620mm,
curvature radius of 1D-3D, and wall thickness of 5-80 mm.
The mandrel for Elbow Cold Forming Machine Make Pipe Fitting Mould Die Elbow Mould
And Mandel comes with an ox horn shape, and is necessary during the hot
forming process. Due to the special shape design, it enables
diameter expanding while creating the bending.
And the mandrel and Elbow Cold Forming Machine Make Pipe Fitting Mould Die Elbow Mould
And Mandel material used in our factory has the characteristics of wear
resistance, bending resistance and strong impact resistance, and
the surface is bright and clean, suitable for the extrusion of
copper, iron, aluminum, zinc, stainless steel and other metals.
Advantage of Elbow Cold Forming Machine Make Pipe Fitting Mould Die
Elbow Mould And Mandel are as follows:
*High hardness and abrasion resistance surpasses the die steel, and
does not strain the surface of the machined part.
*Compared with steel molds, it has good thermal conductivity and
does not stick to molds, which can ensure uniform mold *temperature
distribution during work, will not cause mold cracks due to local
high temperature, and will not cause cold sweat, *exfoliation, and
wrinkles in stretched products. phenomenon.
*Economic and practical, long life of core rod material.
*The core rod material processing technology is simple. Compared
with steel molds, no direct heat treatment is required for direct
polishing. Therefore, the heat treatment cost is reduced, the mold
processing time is shortened, and the number of stretching times
can be reduced and the cost of the mold can be reduced.
The Packing of Elbow Cold Forming Machine Make Pipe Fitting Mould Die Elbow Mould
And Mandel:
