Elbow Dimension Shaping Hydraulic Press Machine From China
Main usage of the Elbow Dimension Shaping Hydraulic Press Machine From China:

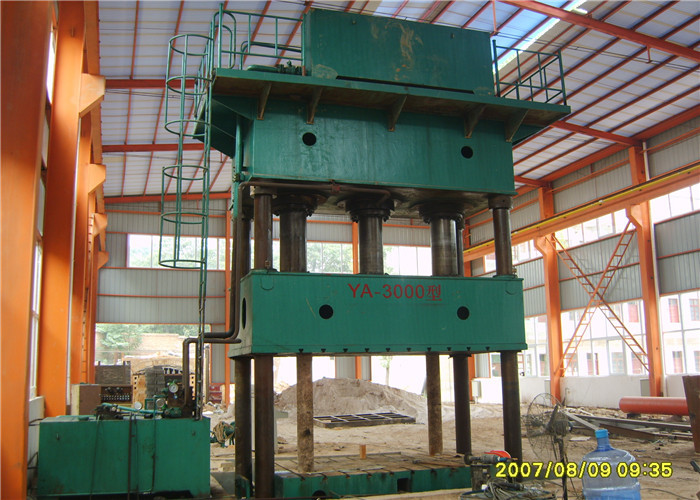

The machine has frame and four columns two structures, mainly
applicable to all types of black and nonferrous metal sheets
covering parts deep, shallow drawing process ,it can also be used
for bending, milling, stamping and other craft.
If you are interested in our single hydraulic press machine,please
visit to our factory to know more information about single
hydraulic press machine.hei yan also professionally manufacture
elbow forming machine,bending machine,pipe expanding machine,medium
frequency,tee machine,steel pipe,pipefittings and so on.
| Specification |
| Item | Unit | HYY-63 | HYY-100 | HYY-200 | HYY-315 | HYY-315A | HYY-500 | HYY-500A | HYY-630 | HYY-800 | HYY-1000 | HYY-1600 | HYY-2000 | HYY-2500 |
| Nominal Pressure | KN | 630 | 1000 | 2000 | 3150 | 3150 | 5000 | 5000 | 6300 | 8000 | 10000 | 16000 | 20000 | 25000 |
| Ejecting Force | KN | 180 | 190 | 300 | 400 | 400 | 1000 | 1000 | 1000 | 1000 | 1000 | 2000 | 2500 | - |
| Back Stroke Force | KN | 190 | 320 | 470 | 600 | 600 | 1000 | 1000 | 1000 | 1100 | 1300 | 1000 | 2600 | 1000 |
| Stroke Length | mm | 400 | 600 | 710 | 800 | 800 | 900 | 900 | 900 | 900 | 900 | 1000 | 1000 | 1200 |
| Ejecting Stroke | mm | 150 | 200 | 200 | 250 | 250 | 350 | 350 | 350 | 350 | 350 | 400 | 300 | - |
| Opening Height | mm | 600 | 900 | 1120 | 1250 | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 2500 | 2500 |
| Speed of Slide | Idle Stroke | mm/S | 76 | 80 | 120 | 100 | 100 | 100 | 140 | 80 | 120 | 120 | 150 | 150 | 150 |
| Work | mm/S | 15 | 10 | 10-15 | 6-12 | 6-12 | 4-10 | 4-10 | 4-10 | 5-12 | 4-12 | 5-12 | 4-10 | 5-12 |
| Back Stroke | mm/S | 70 | 50 | 80 | 65 | 65 | 80 | 80 | 70 | 90 | 90 | 150 | 150 | 120 |
| Ejecting Speed | Upward | mm/S | 80 | 80 | 95 | 95 | 95 | 80 | 80 | 80 | 65 | 80 | 50 | 40 | - |
| Back | mm/S | 160 | 160 | 135 | 135 | 135 | 160 | 160 | 220 | 200 | 170 | 80 | 120 | - |
| Bolster Surface | L.R. | mm | 520 | 690 | 1000 | 1260 | 2000 | 1400 | 2200 | 1600 | 1500 | 1500 | 2500 | 2000 | 2800 |
| F.B. | mm | 490 | 630 | 900 | 1120 | 1400 | 1400 | 1400 | 1600 | 1500 | 1500 | 1800 | 2000 | 2400 |
| Overall Dimension | L.R. | mm | | | | | | 4060 | 5000 | 5145 | 5100 | 4900 | 8300 | 8000 | 3650 |
| F.B. | mm | | | | | | 3525 | 3525 | 4600 | 4200 | 3400 | 3000 | 3000 | 5900 |
| Above Ground | mm | 2592 | 3090 | 3950 | 4390 | 4680 | 5700 | 5700 | 6000 | 7100 | 7500 | 5925 | 7660 | 7530 |
| Power of Motor | KW | 7.5 | 7.5 | 22 | 22 | 22 | 44 | 46 | 60 | 74 | 68 | 91..6 | 183 | 156 |
| Weight | Kg | 3000 | 3500 | 10500 | 15500 | 28000 | 29000 | 42000 | 42000 | 51000 | 54000 | 142000 | 148000 | |
Elbow Dimension Shaping Hydraulic Press Machine From China machine including machine body,main cylinder,ejection cylinder and
topping up device.Actual unit is combined by oil case,high pressure
pump,low pressure control system,generators and various hydraulic
valves,direction valves.Electric device according to hydraulic
system progress,choose ruled working style,according to
instruct,finish craft cycle actions.Actual unit is under control of
electric device,via pump and cylinders and various hydraulic
valves,realize energy transfer and finish every craft cycle
working.
