Line Pipe Bends Elbow Making Hot Induction Machine From China
We manufacture Butt welded elbow machine and pipe expanding
machine, pipe bending machine,Hot induction heating equipment
according to customer's require.
1. The range of the size is OD: 1 inch (25mm)- 60 inches (1420mm);
Thickness: 5mm – 120mm;
Angle: 22.5 degree 45 degree 90 degree 135 degree and the angle of
user needs
2. Line Pipe Bends Elbow Making Hot Induction Machine From China is composed by: Hydraulic main pushing machine, hydraulic pump,
operate panel, control panel of generators, medium frequency,

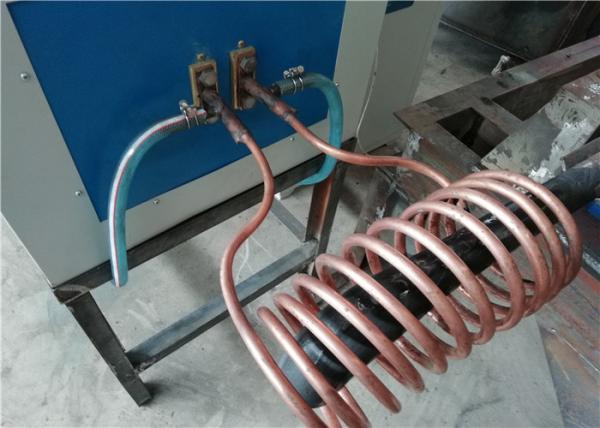

compensating capacitor, water cable, induction coils adjust frame,
reactor.
| Elbow size | outer diameter Φ25mm(1″)~Φ1420mm(56″) |
| Wall thickness | 5~120mm |
| Bent diameter | ≤3 |
| Bent degree | 22.5°,45°,90°,135° etc. |
| Hydraulic cylinder | 2/4sets |
| 1. machine base/frame |
| 2. Main cylinder and supporting plate |
| 3. pushing plate |
| 4. front supporting plate |
| 5. loading table |
| 6. induction coils and adjusting device |
| 7. medium frequency power supply |
| 8. electrical control system |
9. auxiliary equipment: hydraulic machine/ stamping moulds/pipe end
cutting machine/quality testing machine
|
Usage of the elbows make by Line Pipe Bends Elbow Making Hot Induction Machine From China
These elbow are widely made use of in the connection of the
commercial pipelines for the petrochemical, gas and also oil
pipelines, electric power, food, ect.It has specific power
construction and electric system, embraces PLC center control,
machine is much very easy to be operated.
it is two warmth approach: high frequency as well as intermediate
frequency.
