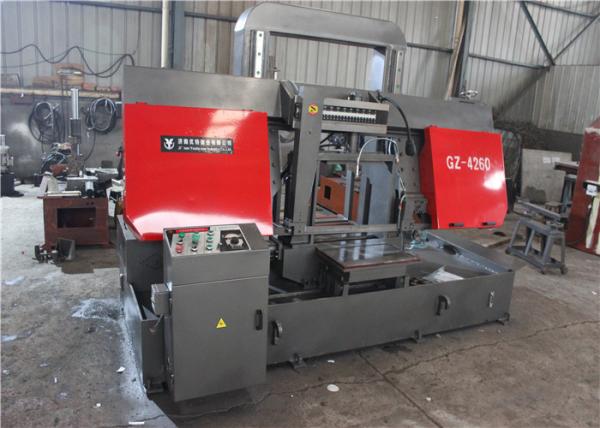

GZ4260 CNC Fully Automatic Hydraulic Band Saw Machine Band Saw
Machine
Schen CNC band sawing machine GZ4260 is the company's comprehensive
domestic and foreign advantages of similar products, scientific
design of a series of products.Adopting advanced PLC control, it
has the characteristics of reasonable structure, stable
performance, simple and reliable operation, etc.Suitable for
cutting all kinds of ferrous and non-ferrous metals under
600×600mm.It is an ideal product with narrow incision, high
efficiency, material saving and energy saving.
Features of band saw machine tools:
1. PLC touch screen and grating ruler are adopted to control the
human-machine interface system, with reliable action, stable
operation and high precision.
2. All operation actions are completed by the hydraulic system.
3, feeding length: each time the length can be sent 400mm, multiple
feeding, feeding using grating ruler control, high precision
4. Cutting feed: adopt hydraulic stepless speed regulation..
| Model Name | GZ4240 | GZ4250 | GZ4260 |
| Max.cutting(mm) | ●400■400W×400H | ●500■500W×500H | ●600■600W×600H |
| Saw blade speed(m/min) | 27,45,69 | 27,45,69 | 27,45,69 |
| Saw blade size(mm) | 41×1.3×5000 | 41×1.3×5800 | 54×1.6×6640 |
| Main motor(kw) | 4 | 5.5 | 5.5 |
| Hydraulic motor(kw) | 0.75 | 0.75 | 1.5 |
| Single feed length(mm) | 500 | 500 | 500 |
| Feeding precision(mm) | ±0.20 | ±0.20 | ±0.20 |
| Main transmission structure | Worm gear transmission |
| Working clamping mode | Hydraulic vice |
| band saw blade tensioning method | Manual |
| Cleaning | wire brush & flood coolant |
| Dimensions (mm) | 2400×2380×1800 | 2800×2400×2050 | 3100×2500×2100 |
Advantages of band saw machine structure:
1. The band saw machine is a double-cylinder double-cylinder
structure with ultra-long sliding sleeve (with self-lubricating
bearing inside), which constitutes a stable sawing structure to
ensure guiding accuracy and stable and reliable sawing;
2. The band saw machine saw belt guide device of the sawing machine
is double guided by carbide and rolling bearing, which is
reasonable in design and effectively prolongs the service life of
the saw belt.
3. High performance worm gear reducer with band saw machine, strong
power, high reliability, precision balance correction, reduce noise
and vibration.
4. The unique hydraulic system design of the band saw machine makes
the descending speed stable. This precision system can prevent
abnormal damage of the saw blade and achieve the ideal sawing
effect.
5. The band saw machine can be equipped with large-stroke electric
roller wheel material rack, which can quickly realize the movement
and positioning of the workpiece, reduce the labor intensity of
workers and improve work efficiency.
