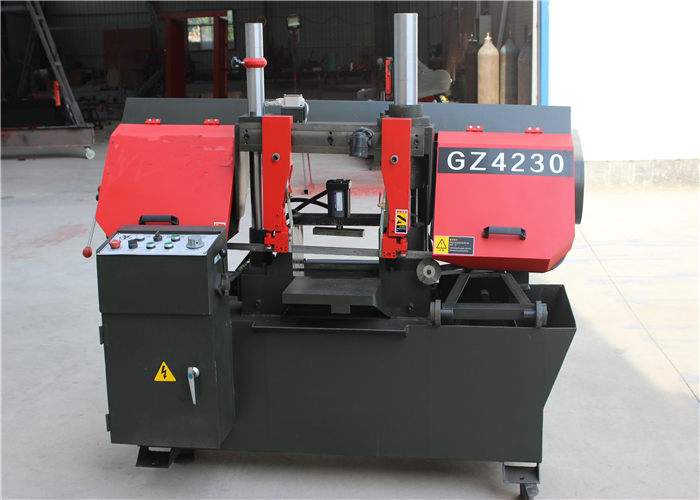

GZ4230 Cutting Capacity300mm Hydraulic Cut Pipe Fittings Band Saw
Machine
GZ4230 horizontal CNC band sawing machine set the essence of
similar products at home and abroad, reasonable structure, stable
technical performance, convenient operation, it is mainly used for
large iron and steel group, pipeline, water and electricity
machinery, heavy forging, die steel and other large material
cutting processing, has the curf narrow, material and energy
saving, high cutting precision, high efficiency advantages.This machine adopts the stepless speed change of the line speed of
the saw blade, which is especially suitable for the efficiency of
sawing large materials and saving the use cost of the saw blade
Band sawing machine 1.Man-machine interface replaces traditional control panel mode,
digital setting of sawing parameters,PLC programmable controller,
flexible setting and changing of sawing mode.
Band sawing machine 2.After setting the parameters of the machine tool, it has the
functions of automatic clamping, automatic feeding, automatic fast
rising (i.e. cutting back) and automatic feeding through machinery,
electrical and hydraulic, without manual operation.
Band sawing machine3, the cutting feed of the machine tool, in the given range, can be
stepless speed regulation.
Band sawing machine4. Hydraulic feed is adopted for work feed, and raster ruler is
adopted for feeding positioning. Positioning error.Poor & lt;The
0.02 mm
Band sawing machine5. Hard chrome plated cylinder is used for the rising and falling
motion of the saw frame, with high precision.
Band sawing machine6. Stepless speed regulation of saw belt.
| Type | GZ 4230 |
| Cut capcity W*H (mm) | round 300 |
| square 300*300 |
| Bundle cutting W*H (mm) | Max.200*90 |
| Min.100*20 |
| Saw belt size(mm) | 3620*27*0.9 |
| belt line speed(m/min) | 40/60/80 |
| Main generator power(kw) | 3 |
| Hydraulic generator power(kw) | 0.75 |
| Cooling generator power (kw) | 0.04 |
| Working clamp style | Hydraulic |
| Saw belt tighten style | Hand |
| Main trasmit structure | Turbine |
| Loading style | Extra roller |
| Packing dimensions(mm) L*M*H | 1750*2200*1450 |
| Weights of machine (kgs) | 700kgs |
Band sawing machine1. CNC band sawing machine series is suitable for cutting materials
of the same specification in large quantities, with fast cutting
speed, high efficiency, stability, energy saving and material
saving.It can be equipped with small material into a bundle
clamping device.
Band sawing machine2. The equipment has manual, automatic and emergency stop
functions, hydraulic feed work, stepless speed regulation,
hydraulic clamping work, automatic stop, break the belt stop
protection device.
Band sawing machine3. Man-machine interface replaces the traditional control panel
function, digital setting, indicator light, etc. to display system
status, operation instructions and parameter setting at any
time;All Settings can be completed in the human-machine interface
dialog box, all information displayed in Chinese, the operation is
very simple.
Band sawing machine4. PLC programmable controller, set the whole process of sawing
automatic program.
Band sawing machine5. Feeding length is controlled by servo motor. Feeding length
error & LT;0.2 mm;Five sets of sawing parameters can be set at one
time.
Band sawing machine6. The function of turning Angle can be added according to
customers' requirements
