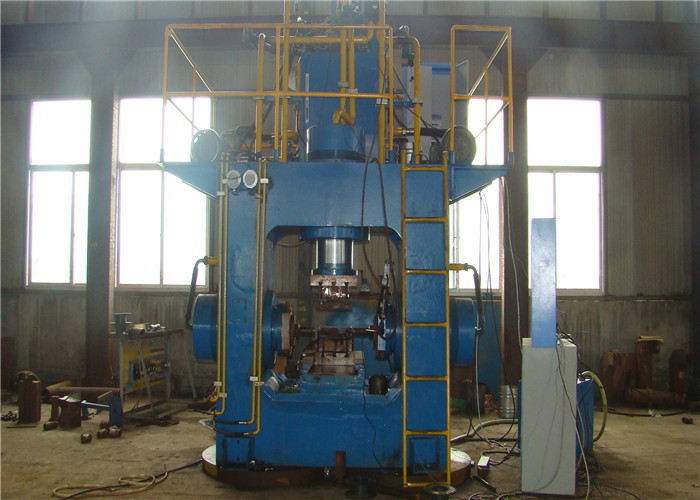

24 Inch Carbon Steel / Alloy Steel Tee Forming Machine
This model of tee elbow forming machine is used for manufacturing
Carbon/Stainless tee, the whole machine welded by high quality
plate, to make sure it have high structural strength. Easy for
operation and maintenance.
Tee molding machine is used for carbon steel, stainless steel pipe
into a special hydraulic machine, suitable for a variety of
specifications of tee pipe fitting joint extrusion molding change
the position of the cylinder, can be processed and manufactured 90
degrees, 135 degrees and other angles of tee pipe joint.The
diameter of the tee is 21mm-630mm, and the wall thickness is
3mm-20mm.Hydraulic system of three-way forming machine is hydraulic
power mechanism installed on the top of the fuselage, by pump,
motor, cartridge valve integration block, fuel tank and other
components, the power mechanism includes oil filtration, oil
temperature oil level display and other devices.The output flow of
the main oil pump is constant power and can vary with the
pressure.The structure of the three-way forming machine is the
optimized design of the whole frame fuselage to ensure the
strength, the welding parts for non-destructive flaw detection,
after welding operation aging treatment, to ensure the complete
elimination of stress, equipment in use without deformation.Tee
machine is provided with T row groove under the slider and above
the work table for mounting the mold.The dead point lock device on
the slider is provided to prevent the slider from sliding.The power
mechanism is placed on the top of the machine, and the top of the
fuselage is provided with a safety platform and a fence.Slide guide
adopts non-recovery type automatic circulation thin oil ruiyu
sliding, and is equipped with oil box and fault display device.
Specification
Parameter | | |
| Main up cylinder | | 300 stroke 400mm 1pc |
| Main side cylinder | | 280 stroke 200mm 2pcs |
| Push out cylinder | | 80 stroke 150mm 1pc |
| Main working system pressure | Rated | 28MPa |
| Max system operating pressure | | 32MPa |
| Thickness of main plate | Q325 | 30mm |
| Max force for main up cylinder | | 220t |
| Max force for main side cylinder | | 200t |
| Max force for push out cylinder | | 10t |
| Main motor | | 22KW |
| Main pump flow | | 63L/min |
| Small motor | | 3KW |
| Small pump flow | | 16L/min |
| Max Tee processing capacity | Mm | D=1/2”--2” |
2. Hydraulic system
| Name | Qty | Specification |
| Working pump | 2pcs | 63SCY14-1B |
| Working motor | 2pcs | 22KW |
| Working motor unit | 1set | 3KW--FC16 |
| Hydraulic valve | 1set | Integrated |
| Operate system | 1set | Automatic |
| Touch screen | 1set | |
After sales service:
1.After the prepayment, the seller provide basic layout, equipment
hydraulic principle diagram, electrical diagram, a set of
instructions. For installation, the buyer is responsible for the
cost of transport and living fees, and pay the technical personnel
installing and training expense per people per day 100 USD.
2.The whole equipment warranty 12 months. Hydraulic components and
electrical components warranty 3 months. (for non-human factors)
3. Prepared by Buyer:
| No. | Name | | No. | Name |
| 1 | Connect wire and cable | 4 | Machine foundation |
| 2 | L-HM46# Anti-wear hydraulic oil | 5 | Water tank and pump |
| 3 | Moulds, pusher | 6 | Cutting machine |
