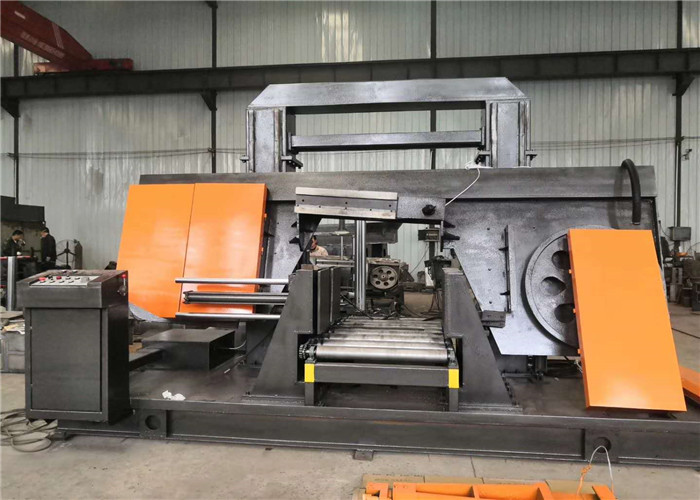

Double-Column Gantry Fully Automatic Numerical Control Band Saw
Machine
GZ4280 linear guide rail with sawing machine
1. The saw cutting feed is controlled by hydraulic pressure, and
stepless speed regulation can be achieved by regulating the speed
regulating valve.
2. Equipped with high-power worm gear reducer, strong power, high
reliability, can meet the long-term operation.
3. The lifting guide adopts rolling linear guide pair, with high
motion precision.
4. The workpiece is clamped by hydraulic pressure, and double
clamping is optional
5. The feeding mode adopts the roller drop path type.
Optional saw belt hydraulic tensioning, cutting speed frequency
conversion control curve
| Type | GZ 4280 |
| Cut capacity W*H (mm) | round 800 |
| square 800*800 |
| Bundle cutting W*H (mm) | / |
| / |
| Saw belt size(mm) | 8800*67*1.6 |
| belt line speed(m/min) | 40/60/80 |
| Main generator power(kw) | 7.5 |
| Hydraulic generator power(kw) | 2.2 |
| Cooling generator power (kw) | 0.12 |
| Working clamp style | Hydraulic |
| Saw belt tighten style | Hydraulic |
| Main trasmit structure | Turbine |
| Loading style | Extra roller |
| Packing dimensions(mm) L*M*H | 4200*2100*2650 |
| Weights of machine (kgs) | 11800 |
After sales service:
1.After the prepayment, the seller provide basic layout, equipment
hydraulic principle diagram, electrical diagram, a set of
instructions. For installation, the buyer is responsible for the
cost of transport and living fees, and pay the technical personnel
installing and training expense per people per day 100 USD.
2.The whole equipment warranty 12 months. Hydraulic components and
electrical components warranty 3 months. (for non-human factors)
