Elbow Calibration 1000 Ton Hydraulic Press Easy Operation Hydraulic
Press Machine

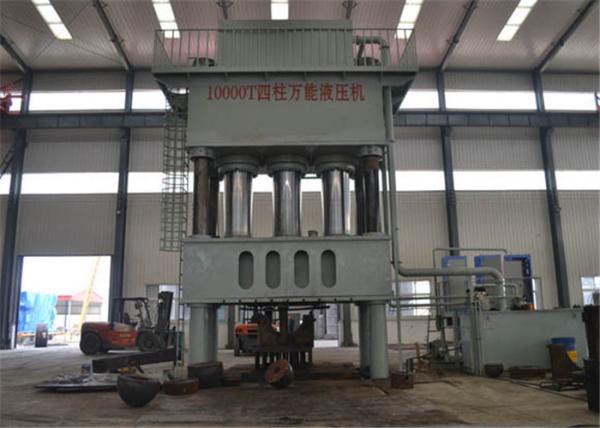

The Four Column Type Hydraulic Press Machine For Elbow Calibration has frame and four columns two structures, mainly applicable to
all types of black and nonferrous metal sheets covering parts deep,
shallow drawing process ,it can also be used for bending, milling,
stamping and other craft.
If you are interested in our single hydraulic press machine,please
visit to our factory to know more information about single
hydraulic press machine.hei yan also professionally manufacture
elbow forming machine,bending machine,pipe expanding machine,medium
frequency,tee machine,steel pipe,pipefittings and so on.
| Specification |
| Item | Unit | HYY-63 | HYY-100 | HYY-200 | HYY-315 | HYY-315A | HYY-500 | HYY-500A | HYY-630 | HYY-800 | HYY-1000 | HYY-1600 | HYY-2000 | HYY-2500 |
| Nominal Pressure | KN | 630 | 1000 | 2000 | 3150 | 3150 | 5000 | 5000 | 6300 | 8000 | 10000 | 16000 | 20000 | 25000 |
| Ejecting Force | KN | 180 | 190 | 300 | 400 | 400 | 1000 | 1000 | 1000 | 1000 | 1000 | 2000 | 2500 | - |
| Back Stroke Force | KN | 190 | 320 | 470 | 600 | 600 | 1000 | 1000 | 1000 | 1100 | 1300 | 1000 | 2600 | 1000 |
| Stroke Length | mm | 400 | 600 | 710 | 800 | 800 | 900 | 900 | 900 | 900 | 900 | 1000 | 1000 | 1200 |
| Ejecting Stroke | mm | 150 | 200 | 200 | 250 | 250 | 350 | 350 | 350 | 350 | 350 | 400 | 300 | - |
| Opening Height | mm | 600 | 900 | 1120 | 1250 | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 2500 | 2500 |
| Speed of Slide | Idle Stroke | mm/S | 76 | 80 | 120 | 100 | 100 | 100 | 140 | 80 | 120 | 120 | 150 | 150 | 150 |
| Work | mm/S | 15 | 10 | 10-15 | 6-12 | 6-12 | 4-10 | 4-10 | 4-10 | 5-12 | 4-12 | 5-12 | 4-10 | 5-12 |
| Back Stroke | mm/S | 70 | 50 | 80 | 65 | 65 | 80 | 80 | 70 | 90 | 90 | 150 | 150 | 120 |
| Ejecting Speed | Upward | mm/S | 80 | 80 | 95 | 95 | 95 | 80 | 80 | 80 | 65 | 80 | 50 | 40 | - |
| Back | mm/S | 160 | 160 | 135 | 135 | 135 | 160 | 160 | 220 | 200 | 170 | 80 | 120 | - |
| Bolster Surface | L.R. | mm | 520 | 690 | 1000 | 1260 | 2000 | 1400 | 2200 | 1600 | 1500 | 1500 | 2500 | 2000 | 2800 |
| F.B. | mm | 490 | 630 | 900 | 1120 | 1400 | 1400 | 1400 | 1600 | 1500 | 1500 | 1800 | 2000 | 2400 |
| Overall Dimension | L.R. | mm | | | | | | 4060 | 5000 | 5145 | 5100 | 4900 | 8300 | 8000 | 3650 |
| F.B. | mm | | | | | | 3525 | 3525 | 4600 | 4200 | 3400 | 3000 | 3000 | 5900 |
| Above Ground | mm | 2592 | 3090 | 3950 | 4390 | 4680 | 5700 | 5700 | 6000 | 7100 | 7500 | 5925 | 7660 | 7530 |
| Power of Motor | KW | 7.5 | 7.5 | 22 | 22 | 22 | 44 | 46 | 60 | 74 | 68 | 91..6 | 183 | 156 |
| Weight | Kg | 3000 | 3500 | 10500 | 15500 | 28000 | 29000 | 42000 | 42000 | 51000 | 54000 | 142000 | 148000 | |
Applications of Four Column Type Hydraulic Press Machine For Elbow Calibration:
Frame Type Hydraulic Pressing Machine is Used for pressing
technology of plasticity material. Such as flanging, sheet tensile,
bending etc, can also used for correct, pressing, could extrusion
and pressure molding process of plastic products and the powder
product.
Frame Type Hydraulic Pressing Machine is suitable for the pressing,
drawing, edging, bending, adjusting, cold installing, cold and hot
forging and etc for metal and non-metal materials.
