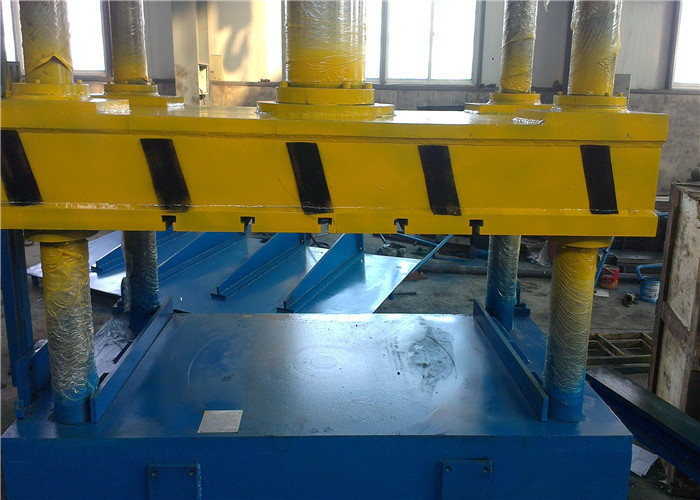

80 - 1000T Hydraulic Punch Press Semi Automatic Hydraulic Press
Machine
80 - 1000T Hydraulic Punch Press Semi Automatic Hydraulic Press
Machine
is Used for pressing technology of plasticity material. Such as
flanging, sheet tensile, bending etc, can also used for correct,
pressing, could extrusion and pressure molding process of plastic
products and the powder product.
Hydraulic Press Machine Metal Forming Pressing Machine On Sale is suitable for the pressing, drawing, edging, bending, adjusting,
cold installing, cold and hot forging and etc for metal and
non-metal materials.
| Specification |
| Item | Unit | HYY-63 | HYY-100 | HYY-200 | HYY-315 | HYY-315A | HYY-500 | HYY-500A | HYY-630 | HYY-800 | HYY-1000 | HYY-1600 | HYY-2000 | HYY-2500 |
| Nominal Pressure | KN | 630 | 1000 | 2000 | 3150 | 3150 | 5000 | 5000 | 6300 | 8000 | 10000 | 16000 | 20000 | 25000 |
| Ejecting Force | KN | 180 | 190 | 300 | 400 | 400 | 1000 | 1000 | 1000 | 1000 | 1000 | 2000 | 2500 | - |
| Back Stroke Force | KN | 190 | 320 | 470 | 600 | 600 | 1000 | 1000 | 1000 | 1100 | 1300 | 1000 | 2600 | 1000 |
| Stroke Length | mm | 400 | 600 | 710 | 800 | 800 | 900 | 900 | 900 | 900 | 900 | 1000 | 1000 | 1200 |
| Ejecting Stroke | mm | 150 | 200 | 200 | 250 | 250 | 350 | 350 | 350 | 350 | 350 | 400 | 300 | - |
| Opening Height | mm | 600 | 900 | 1120 | 1250 | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 2500 | 2500 |
| Speed of Slide | Idle Stroke | mm/S | 76 | 80 | 120 | 100 | 100 | 100 | 140 | 80 | 120 | 120 | 150 | 150 | 150 |
| Work | mm/S | 15 | 10 | 10-15 | 6-12 | 6-12 | 4-10 | 4-10 | 4-10 | 5-12 | 4-12 | 5-12 | 4-10 | 5-12 |
| Back Stroke | mm/S | 70 | 50 | 80 | 65 | 65 | 80 | 80 | 70 | 90 | 90 | 150 | 150 | 120 |
| Ejecting Speed | Upward | mm/S | 80 | 80 | 95 | 95 | 95 | 80 | 80 | 80 | 65 | 80 | 50 | 40 | - |
| Back | mm/S | 160 | 160 | 135 | 135 | 135 | 160 | 160 | 220 | 200 | 170 | 80 | 120 | - |
| Bolster Surface | L.R. | mm | 520 | 690 | 1000 | 1260 | 2000 | 1400 | 2200 | 1600 | 1500 | 1500 | 2500 | 2000 | 2800 |
| F.B. | mm | 490 | 630 | 900 | 1120 | 1400 | 1400 | 1400 | 1600 | 1500 | 1500 | 1800 | 2000 | 2400 |
| Overall Dimension | L.R. | mm | | | | | | 4060 | 5000 | 5145 | 5100 | 4900 | 8300 | 8000 | 3650 |
| F.B. | mm | | | | | | 3525 | 3525 | 4600 | 4200 | 3400 | 3000 | 3000 | 5900 |
| Above Ground | mm | 2592 | 3090 | 3950 | 4390 | 4680 | 5700 | 5700 | 6000 | 7100 | 7500 | 5925 | 7660 | 7530 |
| Power of Motor | KW | 7.5 | 7.5 | 22 | 22 | 22 | 44 | 46 | 60 | 74 | 68 | 91..6 | 183 | 156 |
| Weight | Kg | 3000 | 3500 | 10500 | 15500 | 28000 | 29000 | 42000 | 42000 | 51000 | 54000 | 142000 | 148000 | |
The working environment of Frame Type Hydraulic Pressing Machine:
1. Temperature: 0 to 40.
2. Humidity relative humidity below 90%.
3. Voltage: 380V(15% and +5%), 50HZ
