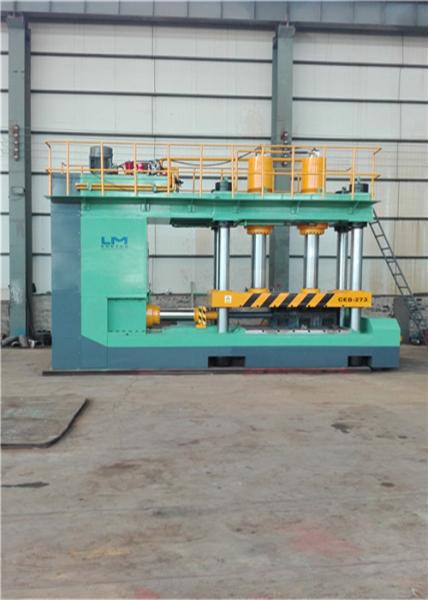

Diameter 34 Mm To 219 Mm Elbow Cold Forming Machine Stainless Steel
Elbow Making Machine
The series cold bending machine is mainly used for carbon steel,
stainless steel 1D, 1.5D elbow cold push molding, push mode has the
steel ball and core rod pushing in two ways. Core rod forming push
system equipped with a semi-automatic mechanical demolding device.

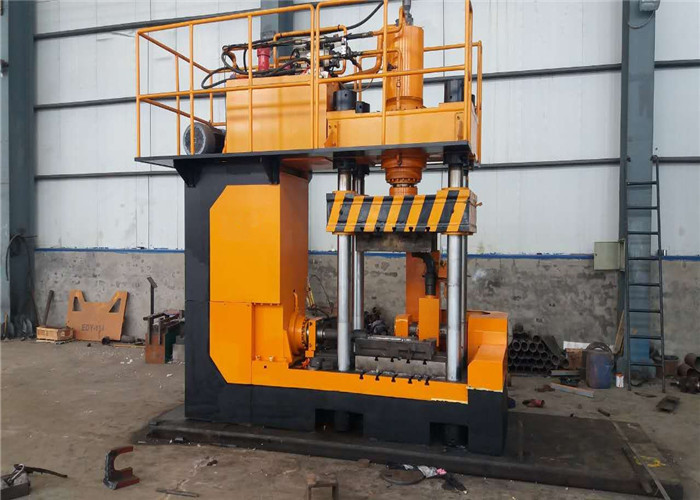

The host comprises a body(frame),die-closing cylinder ,side pushing
cylinder, demolding device. A control mechanism is composed of
power station,limiting device ,pipeline and electrical control box,
operation box.
The forming principle:pipe blank ,in the tunnel cavity by external
locking,is pushed by hydraulic top rod from the guide section into
forming cavity equiped inner core bending. then demold by demolding
device.the whole process is control by PLC.
1.Product Paramete
| Model | Size Range (mm) | Clamping Force (KN) | Pushing Force (KN) | Ratedworking pressure (MPa) | Total power of motor (KW) | Total Weight (kg) |
| HYLW-100 | Φ25-Φ76 | 1000 | 630 | 25 | 11 | 6300 |
| HYLW-200 | Φ34-Φ114 | 2000 | 1250 | 25 | 18.5 | 9000 |
| HYLW-400A | Φ133-Φ273 | 4000 | 2500 | 25 | 29.5 | 38000 |
| HYLW-400B | Φ108-Φ219 | 4000 | 2500 | 25 | 29.5 | 35000 |
| HYLW-630 | Φ133-Φ325 | 6300 | 3150 | 25 | 36 | 48000 |
| HYLW-800 | Φ219-Φ377 | 8000 | 4500 | 25 | 42 | 76000 |
| HYLW-1000 | Φ273-Φ426 | 10000 | 5000 | 25 | 65 | 98000 |
| HYLW-1600 | Φ325-Φ530 | 16000 | 8000 | 25 | 88.5 | 130000 |
| HYLW-2000 | Φ406-Φ630 | 23000 | 12000 | 25 | 110 | 200000 |
We are specialized in the manufacture of high-end equipment cold
eblow forming equipment manufacturer,has a professional engineer
for technical guidance.Engineers engaged in cold bending mechanical equipment design for
more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for
installation,guidance,production,commissioning one-stop service.
Main Features
1.We can make and design all kinds of roll forming machine according
to customers requests.
2.This is a very perfect and durable equipment. We have more than 20 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to
the customersa?? requirement and we could provide technical guiding, production,
installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high
reputation because of the high quality and reasonable price.
